Gedore Z 16 Torque Wrench TF-Z50 TORCOFIX Z 10-50 Nm / 7.5-37 ft-lb (3288307)

Price:

$ 213.95

Gedore Z 16 Torque Wrench TF-Z50 TORCOFIX Z 10-50 Nm / 7.5-37 ft-lb (3288307)
  2. Shop
  3. Torque Wrenches
  4. Gedore Z 16 Torque Wrench TF-Z50 TORCOFIX Z 10-50 Nm / 7.5-37 ft-lb (3288307)
Gedore Z 22 Torque Wrench DMZ 850 DREMASTER Z 250-850 Nm / 185-630 ft-lb (2641577)
Gedore Z 22 Torque Wrench DMZ 850 DREMASTER Z 250-850 Nm / 185-630 ft-lb (2641577)
$ 1,358.27
$ 1,358.27
Milwaukee 3650-22CT M18™ Compact Brushless 1/4" Hex Impact Driver Kit
Milwaukee 3650-22CT M18™ Compact Brushless 1/4" Hex Impact Driver Kit
$ 262.50
$ 262.50

Gedore Z 16 Torque Wrench TF-Z50 TORCOFIX Z 10-50 Nm / 7.5-37 ft-lb (3288307)

https://www.etisupply.com/web/image/product.template/1039357/image_1920?unique=4b20200

Code no. 3288307

$ 213.95 213.95 USD $ 213.95 $ 237.72

Not Available For Sale

($ 213.95 / Units)
  • Brand

This combination does not exist.

Insert Tool Z 16 7.5-37 ft-lb 10-50 Nm Gedore Tools
Contact Us
Gedore Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

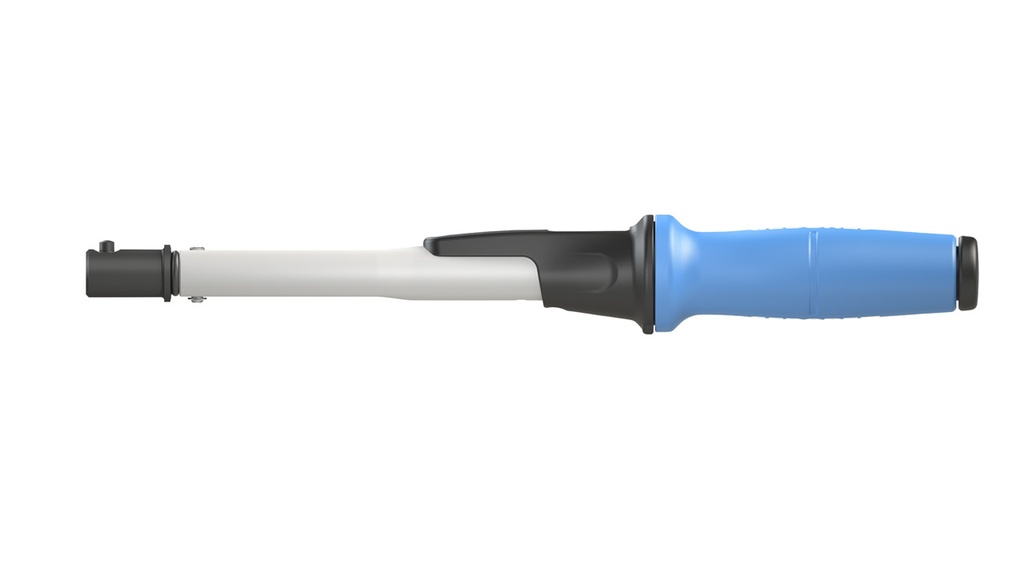

Torque wrench TORCOFIX Z 16 10-50 Nm / 7.5-37 ft-lb

TF-Z50

Code no.: 3288307 EAN: 4010886965634

Product description

  • Use: Controlled screw tightening in the range of 10-50 Nm / 7.5-37 lbf·ft
  • Type: Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades

Features

  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/- 3% deviation and thus with greater precision than the standard-stipulated +/- 4%
  • Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled right- and left-hand tightening (change tool for changing direction)
  • Pin drive Ø 16 mm
  • Working calibration pitch: 32 mm (Ø 16 mm)
  • Robust, matt powder-coated tubular steel construction with high-quality plastic parts
  • New ergonomic handle, shaped according to the natural grip position of the hand
  • Clearly recognisable and tactile hand-centring aid and calibration aid in the middle of the handle
  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values
  • Vertical alignment of the scale; torque adjustment therefore suitable for left- and right-handers
  • Incl. roll-away protection

Dimensions and weights

  • Total width: 39 mm
  • Total height: 39.8 mm
  • Total length: 297 mm
  • Weight: 0.5 kg

Scope of delivery

  • Storage/Content: Plastic box
  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Drive pin / spigot
  • Drive connector pin: 16 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 37 lbf·ft / 50 Nm
  • Torque (min.): 7.5 lbf·ft / 10 Nm
  • Torque wrench function: Triggering
  • Material: Tubular steel construction with high-quality plastic parts
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789-2:2017
  • Scale division: 1 Nm

Note: Technical changes and errors reserved.
