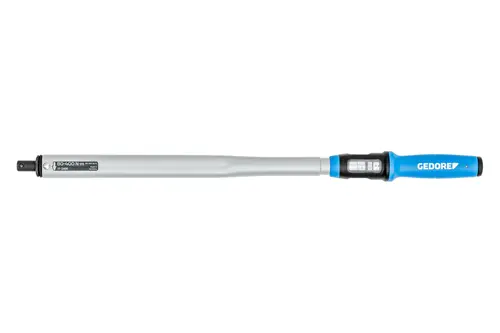

Torque wrench TORCOFIX Z 16 80-400 Nm / 60-300 ft-lb

TF-Z400

Code no.: 3278611 EAN: 4010886962466

Product description

  • Use: Controlled screw tightening in the range of 80-400 Nm / 60-300 lbf·ft
  • Type: Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades

Features

  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/- 3% deviation and thus with greater precision than the standard-stipulated +/- 4%
  • Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled right- and left-hand tightening (insert tool for change of direction)
  • Spigot end Ø 16 mm
  • Factory calibration pitch: 32 mm (Ø 16 mm)
  • Robust, matt powder-coated tubular steel construction with high-quality plastic parts
  • New ergonomic handle, shaped according to the natural grip position of the hand
  • Clearly recognisable and tactile hand-centring aid and calibration aid in the middle of the handle
  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values
  • Vertical alignment of the scale; torque adjustment therefore suitable for left- and right-handers
  • Incl. roll-away protection

Dimensions and weights

  • Total length: 657 mm
  • Weight: 1.55 kg

Scope of delivery

  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Drive pin / spigot
  • Drive connector pin: 16 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 300 lbf·ft / 400 Nm
  • Torque (min.): 60 lbf·ft / 80 Nm
  • Torque wrench function: Triggering
  • Material: Tubular steel construction with high-quality plastic parts
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789-2:2017
  • Scale division: 1 Nm

Note: Technical changes and errors reserved.
