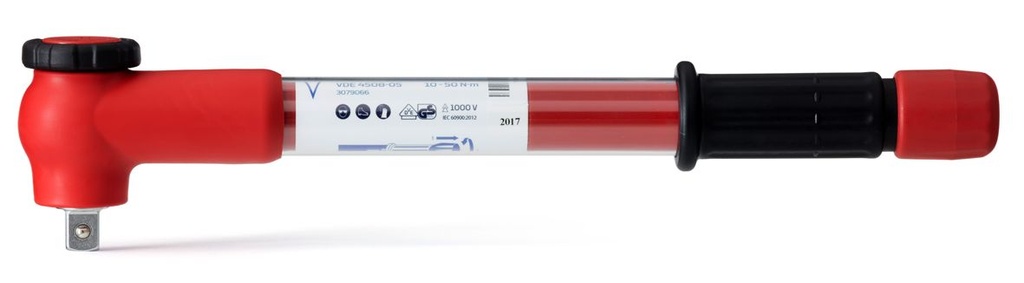

VDE torque wrench 1/2" 10-50 Nm / 7-37 ft-lb

VDE 4508-05

Code no.: 3079066 EAN: 4002805937280

Product description

• Use: Controlled screw tightening in the range of 10-50 Nm / 7-37 lbf·ft
• Type: Adjustable, releasing 1/2" VDE insulated torque wrench with switchable ratchet for electrical / live-work applications
• 1000 V insulated, VDE certified

Features

• Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate; calibrated to a maximum permissible deviation of +/- 3% and thus more precise than the +/- 4% required by the standard
• Tactile and audible release system
• Fine-toothed ratchet (72 teeth), 5° return angle
• Switchable ratchet drive with ball lock
• Mono scale in N·m, readable with vernier
• Ergonomic insulated handle for safe operation up to 1000 V
• For controlled clockwise tightening

Dimensions and weights

• Total length: 369 mm
• Total width: 48 mm
• Total height: 80 mm
• Calibration length: 279 mm
• Head width 1: 48.0 mm
• Head height 1: 62 mm
• Distance housing – square drive: 24 mm
• Net weight: 825 g

Scope of delivery

• Contents (Qty of pieces): 1

Technical characteristics

• Drive type/drive: Switchable ratchet
• Drive connector square: 1/2" / 12.5 mm
• Tightening direction: Right
• Trigger mechanism: Short path / short-stroke triggering
• Torque (max.): 50 Nm
• Torque (min.): 10 Nm
• 1000 V insulated: Yes
• VDE certified: Yes
• Number of teeth: 72
• Angle of rotation to the rear: 5°
• Lock square: Ball lock
• Scale type: Mono
• Scale: 2.5
• Vernier: 0.25 Nm
• Precision: +/- 3%
• Test certificate: DIN EN ISO 6789-2:2017
• Fixed setting: No

Note: Technical changes and errors reserved.
