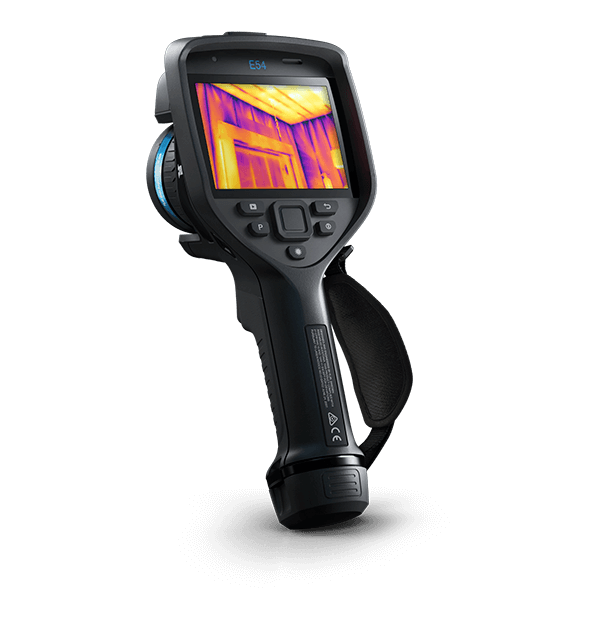

FLIR E54

Many options in stock & ready to ship! The FLIR E54 offers the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection. The 320 ×240 pixel thermal detector accurately measures temperatures up to 650°C (1202°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E54 images directly from the camera to the cloud for easy, secure storage and sharing. All FLIR Exx-Series cameras now come with a free credit to attend a FLIR Academy training session —a $399 value (details below).

Specifications

• IR Resolution: 320 × 240 pixels
• Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
• Accuracy: ±2°C (±3.6°F) or ±2% of the reading
• Digital Camera: 5 MP, with built-in LED photo/video lamp
• Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
• Storage Media: Removable SD card
• Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
• Detector Type and Pitch: Uncooled microbolometer, 17 µm
• Digital Zoom: 1-4× continuous
• f-number: 1.3
• Focus: Manual
• Image Frequency: 30 Hz
• Lens Identification: NA
• Minimum Focus Distance: 0.15 m
• Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
• Picture-in-Picture: Centered infrared area on the visual image
• Radiometric IR video recording: Real-time radiometric recording (.csq)
• Radiometric IR video streaming: Yes, over UVC
• Spectral Range: 7.5–14 µm
• UltraMax: No
• Viewfinder: No
• Measurement Presets: No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot
• Object Temperature Range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
• Spot Meter: 3 ea. in live mode
• Text: Predefined list or touchscreen keyboard
• Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
• Communication Interfaces: USB 2.0, Bluetooth®, Wi-Fi, DisplayPort
• Image File Format: Standard JPEG with measurement data included. Infrared-only mode
• Image Storage Mode: Infrared, Visual, MSX®, Picture-in-Picture, Gallery
• METERLiNK: Yes
• Time Lapse: NA
• Video Out: DisplayPort over USB Type-C
• Battery operating time: >2.5 hours at 25°C (68°F) and typical use
• Battery Type: Rechargeable Li-ion battery
• Operating Temperature Range: -15 to 50°C (5 to 122°F)
• Safety: EN/UL/CSA/PSE 60950-1
• Storage Temperature Range: -40 to 70°C (-40 to 158°F)
• FLIR Inspection Route: Enabled in camera
• Laser Pointer: Yes
• Packaging: Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C).
• Weight: 2.2 lb (1 kg)
