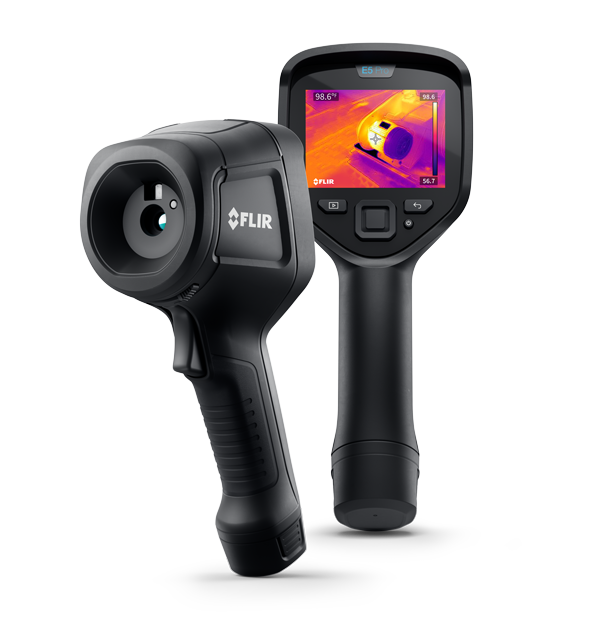

FLIR E5 Pro Pro-Series Infrared Camera with Ignite Cloud

The FLIR E5 Pro is a rugged point-and-shoot thermal camera that can help you work more efficiently than ever before in building surveys, HVAC, automotive, and general electrical and mechanical inspections. Locate and diagnose problems quickly with 160 × 120 thermal resolution (19,200 pixels) and vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Featuring a 3.5-inch, 640 × 480 touchscreen, the E5 Pro simplifies your workflow. You can edit and organize photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud for convenient access from any device. Share images with clients and create quick reports directly in FLIR Ignite or create advanced reports in FLIR Thermal Studio. All new FLIR Ex Pro-Series purchases include an extended FLIR Protect warranty, 12-month FLIR Ignite Pro subscription, and FLIR Ex Pro-Series & IR Fundamentals training from FLIR Academy.

Specifications

• IR Resolution: 160 × 120 (19,200 pixels)
• Thermal Sensitivity/NETD: <0.06°C (0.11°F) / <60 mK at 30°C (86°F)
• Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
• Field of view (FOV): 33° × 25°
• Digital Camera: 5 MP
• Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Digital camera
• Display: 3.5 in. 640 × 480 color LCD
• Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
• Color Palettes: Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
• Detector Type: Uncooled microbolometer
• f-number: 1.4
• Focus: Focus free
• Image Frequency: 9 Hz
• Minimum Focus Distance: 0.36 m (1.18 ft)
• Spatial resolution (IFOV): 3.7 mrad
• Spectral Range: 7.5 µm to 13 µm
• Camera size (L x W x H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
• Object Temperature Range: -20°C to 400°C (-4°F to 752°F) in two ranges
• Spot Meter: Center spot; box with min./max.
• Delta T: Yes, NFPA 70B compliant
• Isotherm: Above alarm, below alarm
• Text: Text annotation on image using onscreen keyboard
• Touchscreen: Capacitive touch
• WiFi: Standard: 802.11 a/b/g/n (2.4 and 5 GHz)
• Battery operating time: 4 hours
• Battery Type: Rechargeable Lithium ion battery
• Charging Time: 2 hours
• Certifications: UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
• Drop test: 2 m (6.6 ft)
• Encapsulation: IP54 (IEC 60529)
• Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
• Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
• Flashlight: Bright LED
• List of Contents: Infrared camera, hard transport case, battery (inside camera), power supply (with EU, UK, US and AU plugs), FLIR Thermal Studio Starter, and printed documentation
• Packaging Size: 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
• Weight: 1.30 lb (0.59 kg)
