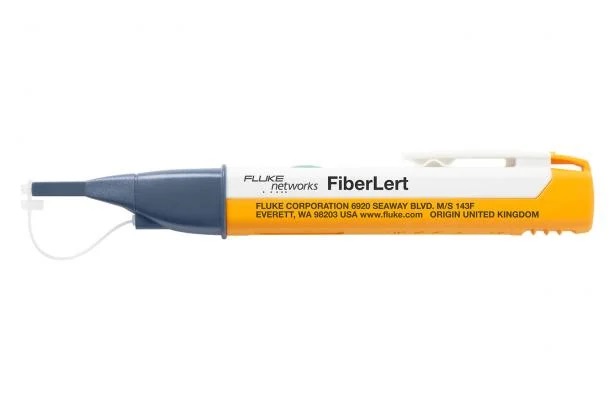

Fluke Networks FiberLert™ Detector (FIBERLERT-125)

Details

Quickly check fiber activity, polarity, and connectivity

Just place in front of the fiber end face or port and a light and tone indicate an active fiber (850 nm to 1625 nm) - no setup or interpretation required.

This pocket-sized tool tests:

• Single-mode
• Multimode
• UPC and APC patch cords
• Ports with a non-contact / non-contaminating detector

The LightBeat™ feature flashes the LED, indicating a powered-on condition and good battery and a timer shuts FiberLert™ Detector off after five minutes of inactivity to extend battery life (2xAAA, included). Rugged design includes a convenient pocket clip and is backed by a two-year warranty.

What's in the box:

• FiberLert™ Detector
• Instruction card
• 2 AAA batteries

Key Features

• Detects optical power in SM and MM fiber (850 to 1625 nm)
• No setup or interpretation – light and sound indicate signal
• “Non-contact” detector reduces risk of contamination and damage
• Suitable for ports and patch cords, SM, MM, UPC and APC
• LightBeat™ feature indicates operation and battery status

Specifications

• Operating Principle: FiberLert is a live fiber detector that senses near infrared light emitted from fiber optic cabling. A continuous red glow at the handle and an audible beeping noise (if not switched off) indicates the presence of near infrared light.
• Optical Interface: Non-contact ceramic ferrule. Fits directly with 1.25 mm LC receptacles. Tethered ferrule adapter for testing 1.25 mm ferrule patch cord. Supports single-mode, multimode, UPC and APC connectors and ports.
• Wavelength Detection: 850 nm to 1625 nm
• Optical Power Detection Range: +3 dBm to -30 dBm
• Light Detection: Visible steady red LED indicator when optical power is detected
• Lightbeat™ Indicator: Flashes twice every two seconds when unit is on and battery strength is sufficient.
• Battery Saver: Unit automatically turns off after five minutes of inactivity
• Batteries: 2 AAA alkaline batteries included
• Battery Life: Typically, greater than 1 year (5 hrs. of use a week)
• Item Size: 0.6” x 1.0” x 6.6” / 1.6 x 2.5 x 16.8 cm
• Item Weight: 2.1 oz / 59 g
• Operating Temperature Range: -10 °C to 50 °C
• Operating Humidity Ranges: 95 % (10 °C to 35 °C); Non-condensing 75 % (35 °C to 40 °C); Non-condensing uncontrolled < 10 °C
• Operating Altitude: ≤ 3000 meters
• Storage Temeperature: -20 °C to 50 °C
