Fluke PVLEAD3 Solar PV Solar Clamp Test Lead Set

Price:

$ 96.29

Fluke PVLEAD3 Solar PV Solar Clamp Test Lead Set
  2. Shop
  3. Fluke PVLEAD3 Solar PV Solar Clamp Test Lead Set
Fluke 700G Pressure Gauge Calibrator, Reference, 5,000 PSIG (FLUKE-700G30)
Fluke 700G Pressure Gauge Calibrator, Reference, 5,000 PSIG (FLUKE-700G30)
$ 1,352.69
$ 1,502.99 (10% OFF)
Fluke 59 MAX Infrared Thermometer
Fluke 59 MAX Infrared Thermometer
$ 115.19
$ 127.99 (10% OFF)

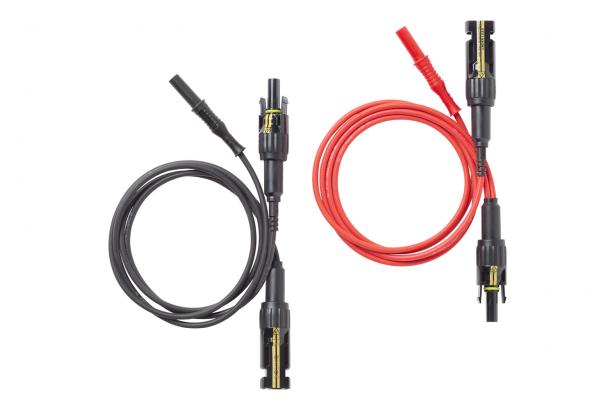

Fluke PVLEAD3 Solar PV Solar Clamp Test Lead Set

https://www.etisupply.com/web/image/product.template/27145/image_1920?unique=08e2740

SKU: 5301195 | PVLEAD3

  • Designed for use with solar clamp meters that accept 4mm banana plugs
  • Ensures safe DC power measurements on Photovoltaic (PV) modules and systems
  • Creates connection between solar panel and inverter for troubleshooting and maintenance of PV systems
  • Complies to CAT III 1000V / CAT IV 600V, 20A ratings in accordance to IEC / EN 61010-031

What's in the box:

  • Set of black and red solar power clamp test leads

$ 96.29 96.291 USD $ 106.99

Not Available For Sale

($ 0.00 / Units)
  • Brand

This combination does not exist.

Test Leads CAT III 1000 V CAT IV 600 V Fluke
Contact Us
Fluke


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

Fluke

PVLEAD3

Fluke PVLEAD3 Solar PV Solar Clamp Test Lead Set

Details

The Pomona Solar PV Clamp Lead Set creates a connection between a solar panel and inverter for troubleshooting and maintenance of PV systems with compliance to CAT III 1000V / CAT IV 600V, 20A ratings in accordance to IEC / EN 61010-031.

What's in the box:

  • Set of black and red solar power clamp test leads

Key Features

  • Designed for use with solar clamp meters that accept 4mm banana plugs
  • Ensures safe DC power measurements on Photovoltaic (PV) modules and systems
  • Creates connection between solar panel and inverter for troubleshooting and maintenance of PV systems
  • Complies to CAT III 1000V / CAT IV 600V, 20A ratings in accordance to IEC / EN 61010-031

Specifications

PVLEAD1
Solar PV Connector to 4mm Test Lead Set		PVLEAD3
Solar PV Clamp Test Lead Set
ContactBrass, Nickel PlatedBrass, Nickel Plated
Length60”36”, 12”
VoltageCAT III 1000V,
CAT IV 600V		CAT III 1000V,
CAT IV 600V
Current20 amp20 amp
StandardsIEC 61010-031IEC 61010-031

Additional Information

Technical Data


Brand Fluke
Pomona-PVLEAD3-Technical-Data-FLK_5301195.pdf
