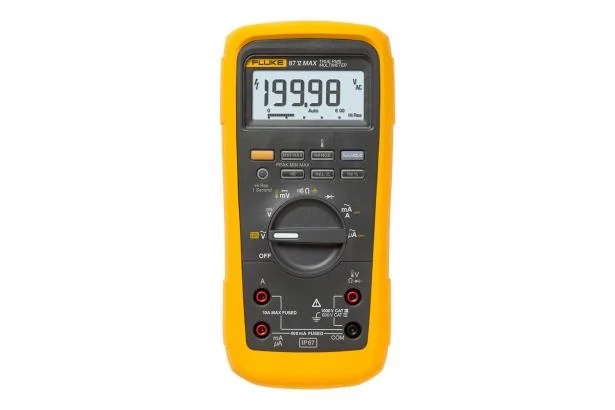

Fluke 87V MAX True-rms Digital Multimeter, w/cal (FLK-87-VMAX CAL)
SKU: 5206068 | 87V MAX CAL
- Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster
- Waterproof, dustproof IP67 case for the most extreme work sites
- Premium TL175 TwistGuard™ test leads
- Double the battery life of the 87V (up to 800 hours); backlit keys for dark environments
What's in the box:
- TL175 TwistGuard® test leads
- AC175 Alligator clips
- 80BK-A temperature probe
- Removable holster with test lead storage
- Three AA batteries (installed)
- A traceable certificate of calibration with data from Fluke
Fluke 87V MAX True-rms Digital Multimeter, w/cal (FLK-87-VMAX CAL)
Details
The 87V MAX contains all the trusted features of the most popular digital multimeter used today, the Fluke 87V, and then some. From wet, dusty or dark environments to long days, the 87V MAX was designed to help you finish the most on a work site. It features a unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment; using true-rms ac voltage and current for accurate measurements on non-linear signals.
Fluke’s most rugged digital multimeter
The 87V MAX is built with an IP67 rated, industrial-strength case and a removable holster. The holster doubles as a test probe holder for easier, one-handed operation. This meter is fully waterproof and dust proof keep working reliably no matter where your job takes you.
4-meter Drop tested
- Industrial-strength is no joke, the meter is designed to survive drops up to 4-meters (13 feet).
Withstands hot and cold environments
- Rely on accurate measurements with the extended operating temperature range of -40 °C (for up to 20 minutes) to +55 °C.
Easy-to-read measurements
The large display digits and 2-level bright, white backlight and backlit keypad buttons make for increased visibility. Along with the high resolution 19,999 count display mode allows you to read measurements easily in any work environment. This multimeter will run for up to 800 hours of battery life and offers measurement capabilities
- up to 1000 V ac and dc and up to 10 A (20 A for 30 seconds),
- frequency to 200 kHz
- min/max/average recording, plus 250 μs Peak min-max to capture variations automatically or
- use the built-in thermometer.
For a complete comparison of specifications, please visit our selection guide for digital multimeters.
| Fluke 87V MAX True-rms Digital Multimeter | Fluke 87V Industrial Multimeter | Fluke 289 True-RMS Data Logging Multimeter | Fluke 179 True-RMS Digital Multimeter | Fluke 1587 FC Insulation Multimeter | |
|---|---|---|---|---|---|
| CAT rating | CAT III 1000 V CAT IV 600 V | CAT III 1000 V CAT IV 600 V | CAT III 1000 V CAT IV 600 V | CAT III 1000 V CAT IV 600 V | CAT III 1000 V CAT IV 600 V |
| True-rms readings | ✔ | ✔ | ✔ | ✔ | ✔ |
| Voltage AC/DC | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Current AC/DC | 10 A | 10 A | 10 A | 10 A | 400 mA |
| Resistance | 50 MΩ | 50 MΩ | 500 MΩ | 50 MΩ | 50 MΩ |
| Capacitance | 9,999 μF | 9,999 μF | 100,000 μF | 9,999 μF | 9,999 μF |
| Temperature | -200 °C to 1090 °C | -200 °C to 1090 °C | -200 °C to 1350 °C | -40 °C to 400 °C | -40 °C to 537 °C |
| Additional measurement capabilities | Conductance, continuity/diode test, duty cycle, frequency, microamps, motor drive (VFD) measurement, pulse width, elative reference | Frequency, continuity/diode test, motor drive (VFD) measurement, duty cycle, microamps, analog bar graph, relative reference | Conductance (50ns), duty cycle, frequency, continuity/diode test, low input impedance, microamps, pulse width | Continuity/diode test, frequency, microamps | Frequency, Pi/DAR timed ratio tests, continuity/diode test, motor drive (VFD) measurement, microamps, relative reference |
| IP rating | IP 67 | IP 30 | IP 42 | - | - |
| Battery life | 800 hours | 400 hours | 200 hours | 200 hours | 1000 hours |
| Drop test | 4 meters | 3 meters | - | - | - |
| Backlit keypad | Yes | No | No | No | No |
What's in the box:
- Fluke 87V MAX True-rms Digital Multimeter
- TL175 TwistGuard® test leads
- AC175 Alligator clips
- 80BK-A temperature probe
- Removable holster with test lead storage
- Three AA batteries (installed)
Key Features
- Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster
- Waterproof, dustproof IP67 case for the most extreme work sites
- Premium TL175 TwistGuard™ test leads
- Double the battery life of the 87V (up to 800 hours); backlit keys for dark environments
Specifications
Electrical Specifications
- DC Voltage - Range: 0.1 mV to 1000 V
- DC Voltage - Accuracy: ±(0.05% + 1)
- DC Voltage - Maximum resolution: 0.1 mV
- AC Voltage - Range: 0.1 mV to 1000 V
- AC Voltage - Accuracy: ±(0.7% + 4) true-rms
- AC Voltage - AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz
- AC Voltage - Maximum resolution: 0.1 mV
- DC Current - Range: 0.1 μA to 10 A; (20 A for 30 seconds maximum)
- DC Current - Amps accuracy: ±(0.2% + 2)
- DC Current - Maximum resolution: 0.1 µA
- AC Current - Range: 0.1 μA to 10 A; (20 A for 30 seconds maximum)
- AC Current - Amps accuracy: ±(1.0% + 2) true-rms
- AC Current - Maximum resolution: 0.1 µA
- Resistance - Range: 0.1 Ω to 50 MΩ
- Resistance - Accuracy: ±(0.2% + 1)
- Resistance - Maximum resolution: 0.1 Ω
- Capacitance - Range: 0.01 nF to 9999 μF
- Capacitance - Accuracy: ±(1% + 2)
- Capacitance - Maximum resolution: 0.01 nF
- Frequency - Range: 0.5 Hz to 199.99 kHz
- Frequency - Accuracy: ±(0.005% + 1)
- Frequency - Maximum resolution: 0.01 Hz
- Duty cycle - Maximum duty cycle: 99.9%
- Duty cycle - Accuracy: ±(0.2% per kHz + 0.1%)
- Duty cycle - Maximum resolution: 0.1%
- Temperature measurement range: –200.0 °C to 1090 °C; –328.0 °F to 1994.0 °F; excluding probe
- 80 BK temperature probe: –40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater; –40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greater
- Conductance - Maximum conductance: 60.00 nS
- Conductance - Accuracy: ±(1.0% + 10)
- Conductance - Maximum resolution: 0.01 nS
- Diode test - Range: 2 V
- Diode test - Resolution: 0.001V
- Diode test - Accuracy: ±(1% + 1)
- Diagnostics and data storage - Peak Min/Max: 250 μS
- Diagnostics and data storage - Min/Max/Avg: Yes
- Diagnostics and data storage - Reading hold/Auto (Touch) Hold: Yes
- Diagnostics and data storage - Relative reference: Yes
- Display - Digital: 6000 counts updates 4/second; 19,999 counts in high–resolution mode
- Display - Analog bar graph: 32 segments, updates 40/second
- Display - Backlight: Two level
- Low pass filter (VFD measurements): Yes
- Input Alert™: Yes
Safety Specifications
- Safety rating: IEC61010-1: Pollution Degree 2; IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V
- Agency approvals: CE, CSA
Mechanical and General Specifications
- IP rating: IEC 60529: IP67
- Power: Three AA batteries. 800 hours typical, without backlight
- Size: 6.0 x 10.1 x 21.5 cm (with holster)
- Weight: 698.5 g (with holster)
- Warranty: Limited lifetime
Environmental Specifications
- Operating temperature: -15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C
- Storage temperature: -40 °C to + 60 °C
- Humidity (without condensation): 0% – 90% (0 °C – 35 °C); 0% – 70% (35 °C – 55 °C)
- Operating altitude: 2000 m
Additional Information
| Brand | Fluke |
