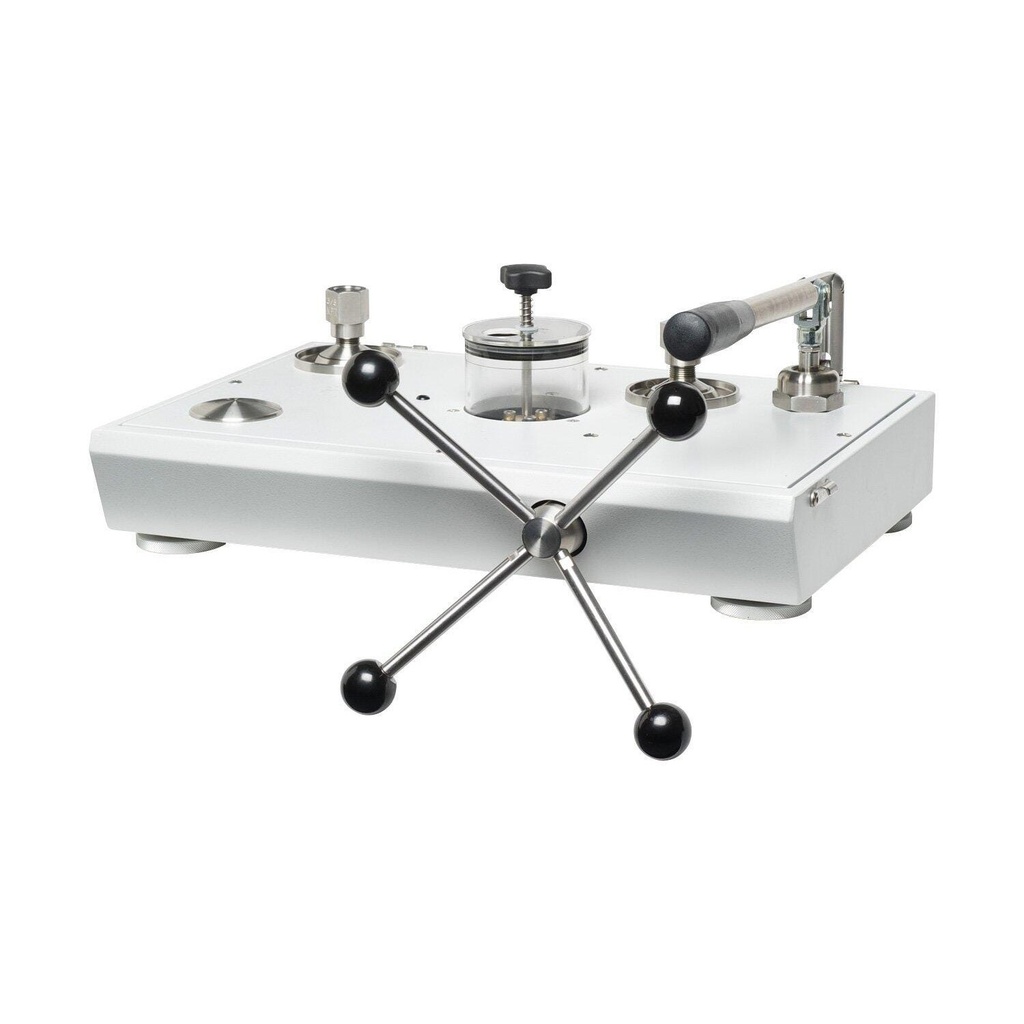

Fluke Calibration P5515-2700G-1/C Hydraulic Calibrator, 70 MPa (10,000 psi), 1 Gauge Accredited

Details

These instruments are used for checking pressure measuring instruments against master test gauges, indicators or transducers. These hydraulic test pumps provide a quick and easy solution for checking pressure measuring instruments to 20,000 psi (1400 bar). Designed for operation with a wide range of fluids the 5515 include several features from our popular line of deadweight testers.

• Generates pressures to 20,000 psi (1400 bar)
• Operational with a wide range of fluids
• Built-in hand pump for system priming and large volume applications
• High quality screw press for fine pressure control
• Acrylic reservoir for visibility of fluid level and quality
• Portable

Key Features

• Generates pressures to 20,000 psi (1400 bar)
• Operational with a wide range of fluids
• Built-in hand pump for system priming and large volume applications
• High quality screw press for fine pressure control
• Acrylic reservoir for visibility of fluid level and quality
• Portable

Specifications

• Pressure range: 0 to 20,000 psi (1,400 bar)
• Test port adapters: (2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP
• Instrument weight: 36 lb (16 kg)
• Instrument size (W x D x H): 17.5 x 12 x 8.5 in (440 x 300 x 215 mm)
• Reservoir volume: 150 cc
• Screw press displacement: 5.5 cc
• Pump displacement: 4.7 cc per stroke

Additional specifications

• Part #: 4341739
