Fluke 3130-G2M Portable Pressure Calibrator US line cord (standard calibration)

Details

Effortless Pressure Calibration—Anywhere, Anytime

Upgrade Your Pressure Calibration Workflow

The Fluke 3130-G2M Portable Pressure Calibrator is designed for professionals who demand speed, accuracy, and convenience in pressure calibration. Combining robust pressure generation, high-precision measurement, electrical testing, and exceptional portability, the 3130-G2M delivers a complete solution for field and lab calibration tasks.

Key Features and Benefits

• Integrated Motorized Pump – Say goodbye to manual hand pumps. The powerful, internal motorized pump delivers fast, effortless pressure generation and control, saving time and eliminating operator fatigue.
• Supports Large Volume Applications – Easily connect to an external gas supply, such as plant air, for quick pressurization of large systems. Fine-tune pressure precisely with the built-in variable volume.
• High-Accuracy Pressure Measurement – The onboard sensor provides reliable measurements up to 2 MPa (300 psi, 20 bar) with outstanding accuracy of ±0.025% of reading + 0.01% FS—including all major sources of error.
• Flexible Measurement Range – Expand your capability by connecting Fluke 700P pressure modules, ensuring precision across a wider range of pressures for any application.
• Comprehensive Electrical Measurement – Calibrate pressure transducers and transmitters with built-in support for 4–20 mA and 0–30 V DC measurements. The 3130-G2M can also supply 24 V DC power and source 4–20 mA current, streamlining transmitter testing.

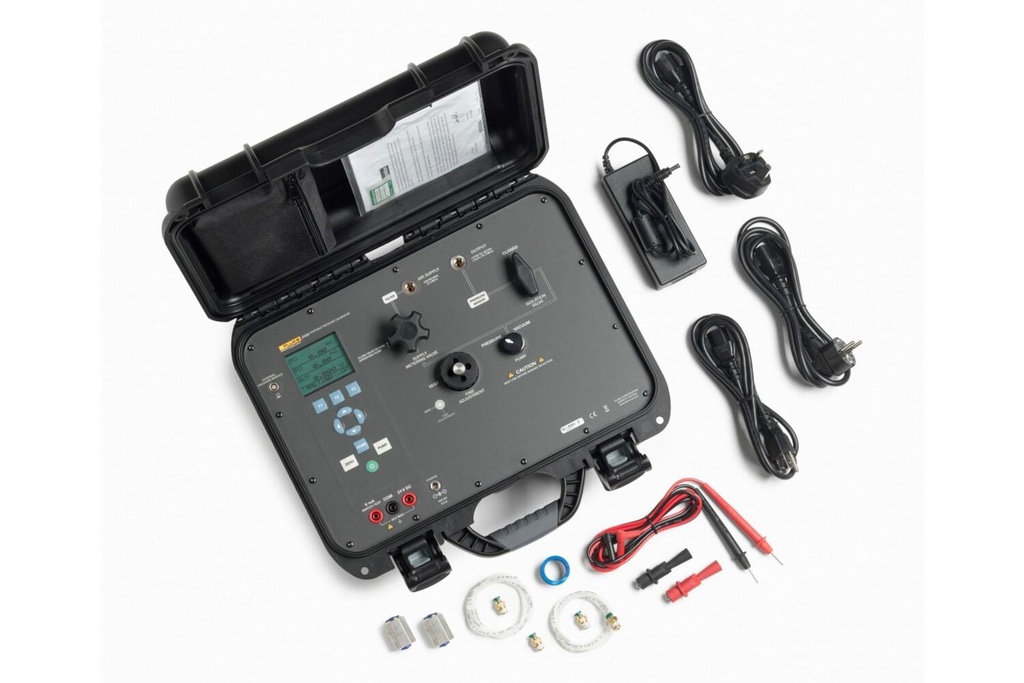

• Rugged, Portable Design – Built tough for the field, the 3130-G2M features a ruggedized case with internal storage for leads, fittings, and power supply. A rechargeable NiMH battery delivers up to 50 hours of operation, or 100 calibrations to 300 psi per charge.
• Simple Battery Recharge – Just plug in with the included universal mains adapter—no special chargers required.
• Seamless Automation and Data Logging – Easily connect to your PC using the Fluke Calibration 700SC Serial Interface Cable and control your calibrator or log data using Fluke Calibration COMPASS for Pressure software.

Designed for True Portability and Productivity

• Lightweight and Compact – Carry the 3130-G2M anywhere; internal storage keeps everything organized and ready for action.
• Field-Ready Power – Up to 50 hours of battery life means you can work longer between charges, with enough power for a full day’s work in demanding environments.
• Easy to Use – Intuitive controls, clear displays, and straightforward operation reduce training time and make every calibration easier.

Automate, Document, and Improve Accuracy

Connect the Fluke 3130-G2M Portable Pressure Calibrator to your PC to automate calibration routines, log results, and enhance traceability. With Fluke COMPASS for Pressure software, you can streamline workflows, improve data integrity, and deliver professional calibration documentation—right from the field.

Experience the convenience, accuracy, and rugged reliability of the Fluke 3130-G2M Portable Pressure Calibrator—your all-in-one solution for pressure calibration, wherever the job takes you.

Key Features

• Measure/generate pressures from vacuum to 2 MPa (300 psi, 20 bar).
• Measure/generate 4 to 20 mA, measures 0 to 30 V DC
• Generate vacuum to -80 kPa (-12 psi, -0.8 bar) or pressure to 2 MPa (300 psi, 20 bar).
• External gas supply up to 2 MPa (300 psi, 20 bar).
• Fine pressure adjustment.
• Measurement accuracy of ± (0.025 % reading + 0.01 % FS).

Specifications

Environmental

• Operating temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C
• Power requirements: 12 V DC (Universal ac adapter/charger supplied)
• Battery: Internal 3800 mAh advanced NiMH pack

Operating Time

• On full charge: Approx 50 hours (Measure only or external air; no pump)
• Using internal pump: Approx 100 calibration cycles to 300 psi

Physical

• Dimensions (L x W x D): 15.25 x 12 x 7 in
• Weight: ~7 kg (15 lb)
• EMI/RFI conformance: EN61326:2006 Annex A
• Connectors/ports: 1/8 in NPT (External supply port and test port)
• Included accessories: Manual, NIST-traceable certificate, test leads, universal ac adapter/charger

Ranges

• Pressure (internal pump): -80 kPa to 2 MPa (-12 to 300 psi, -0.8 to 20 bar)
• Pressure (external air): 0 to 2 MPa (0 to 300 psi, 0 to 20 bar)
• mA: 0 to 24.000 mA
• Volts: 0 to 30.000 V DC
• Engineering units: psi, bar, mbar, kPa, MPa, kgf/cm2, mmH 2 O @ 4°C, mmH 2 O @ 20°C, cmH 2 O @ 4°C, cmH 2 O @ 20°C, inH 2 O @ 4°C, inH 2 O @ 20°C, inH 2 O @ 60°F, mmHg @ 0°C, inHg @ 0°C

Instrumental Measurement Uncertainty

• Pressure: 0.025% of reading ±0.01% FS
• mA: 0.015% of reading ±0.002 mA
• Volts: 0.015% of reading ±0.002 V

Temperature Effect (All Functions)

No effect on accuracy on all functions from 15°C to 35°C

Add ±0.002% F.S./°C for temps outside of 15°C to 35°C

Additional specifications

• Part #: 4317885
• UPC: 0 95969 66543 8
