Fluke Calibration P3022-MBAR-P Pneumatic Deadweight Tester — Dual vacuum/pressure, 15 to 1,000 mbar / 30 to 1,000 mbar vacuum, with built-in hand pump

Details

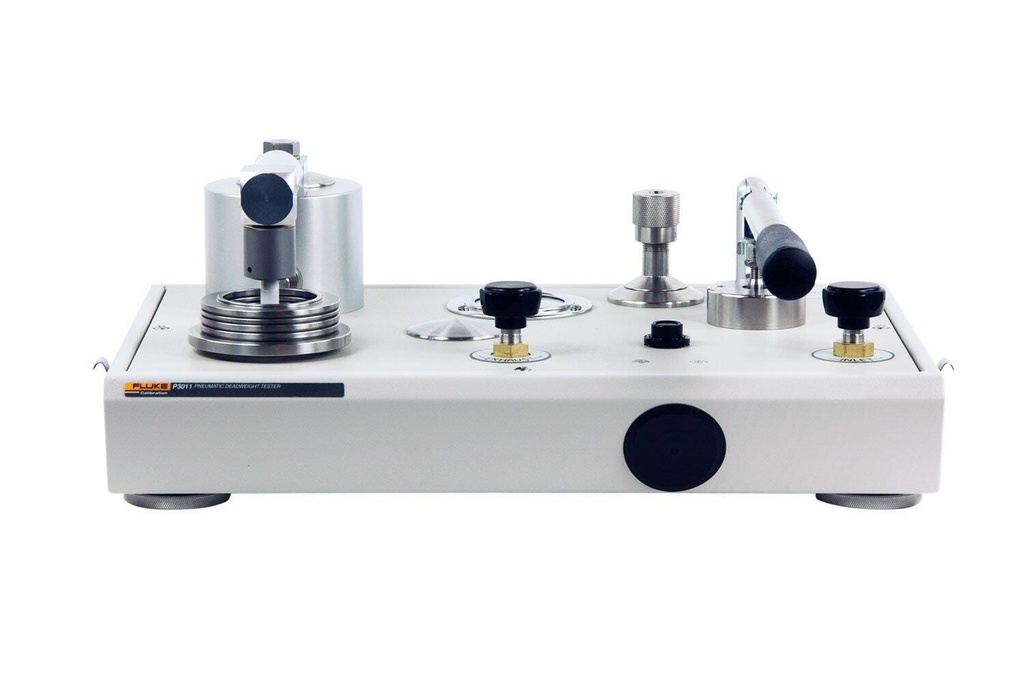

This versatile instrument provides calibrations from 1-30 inHg vacuum (0.03-1 bar) and 3-500 psi (0.2-35 bar) in one extremely accurate yet easy to use primary standard. A selector valve converts the unit from pressure to vacuum mode without the need to exchange pistons. Units are manufactured to the highest standards with certified accuracies traceable to International Standards Laboratories such as the National Institute of Standards and Technology (NIST). These piston/cylinder type pneumatic standards provide excellent stability, repeatability and accuracy. An optional built-in hand pump can be added for both pressure and vacuum generation.

Key Features

• 0.015% of reading accuracy standard (0.008% optional)
• 1-30 inHg vacuum (0.03-1 bar vacuum)
• 3-500 psi (0.2-35 bar) pressure
• inH 2 O and mbar ranges available
• Series 3 non-magnetic stainless steel weights
• Units can be trimmed to local gravity FOC

Specifications

Accuracy

• Accuracy 1: ±0.015% of reading (±0.008% optional)

1. Accuracy based on % of reading from 10% to 100% of the piston range when used in accordance with the corrections found on the calibration certificate. Below 10% ± (accuracy class) x 10% of the piston range.

Mass and PCU Materials of Construction

• Standard weight material: Series 3 non-magnetic austenitic stainless steel
• Weight density: 7.8 g/cm³
• Optional fractional weights: Solution heat treated aluminum
• Weight density: 2.7 g/cm³
• Models P3011, P3012, P3013, P3022, P3023, P3025 (V) - Piston material: Ceramic
• Models P3011, P3012, P3013, P3022, P3023, P3025 (V) - Cylinder material: Martensitic steel
• Models P3011, P3012, P3013, P3022, P3023, P3025 (V) - Coefficient of expansion: 11 ppm/°C
• Models P3014, P3015, P3025 (P) P3031, P3032 (P & V) - Piston material: Tungsten carbide
• Models P3014, P3015, P3025 (P) P3031, P3032 (P & V) - Cylinder material: Martensitic steel
• Models P3014, P3015, P3025 (P) P3031, P3032 (P & V) - Coefficient of expansion: 16.5 ppm/°C
• Model P3016 - Piston material: Tungsten carbide
• Model P3016 - Cylinder Material: Tungsten carbide
• Model P3016 - Coefficient of Expansion: 11 ppm/°C

General

• Test port adaptors: 1/8, 1/4, 3/8 and ½ NPT or BSP
• Instrument weight: 24 lbs
• Instrument size (W x D x H): 17.5 x 12 x 8.5
• Mass set weight (typical): 65 lbs

Minimum Standard Weight Increments

• P3012, P3022 Pressure: 1 inH 2 O, (5 mbar)
• P3013, P3023 Pressure: 2 inH 2 O, (10 mbar)
• P3014, P3015, P3025 Pressure: 1 psi, (0.1 bar)
• P3016, P3031, P3032: 1 psi, (0.1 bar)
• P3011, P3022, P3023, P3025 Vacuum: 0.2 inHg (10 mbar)

Optional Fractional Weights

• P3014, P3015, P3025 Pressure: 0.1 psi (0.01 bar)

Built-in Hand Pumps

• Pressure mode: Max pressure 300 psi (20 bar)
• Vacuum mode: To 90% vacuum

Operating Fluid for Liquid Lubricated Models

• 55-655: Mineral oil (standard)

Options

• PressCal Software: Windows-based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Calibration details are then stored and/or used to automatically create a calibration certificate. PressCal is provided as standard with all 0.008% instruments.

Additional specifications

• Part #: 4184578
• Krytox: For oxygen-safe applications (optional)
• Krytox: As operating fluid for liquid lubricated gas operated models.
