Fluke 700G08 Pressure Gauge, 1,000 PSIG

Price:

$ 1,352.69

  2. Shop
  3. Fluke 700G08 Pressure Gauge, 1,000 PSIG
Fluke 700G01 Pressure Gauge, -10 TO 10 IN H2O
Fluke 700G01 Pressure Gauge, -10 TO 10 IN H2O
$ 1,352.69
$ 1,502.99 (10% OFF)
Fluke 700G06 Pressure Gauge, 100 PSIG
Fluke 700G06 Pressure Gauge, 100 PSIG
$ 1,352.69
$ 1,502.99 (10% OFF)

Fluke 700G08 Pressure Gauge, 1,000 PSIG

https://www.etisupply.com/web/image/product.template/27180/image_1920?unique=389670c

SKU: 4097592 | 700G07 FLUKE-700G07 Pressure Gauge, 500 PSIG

  • Precision pressure gauge calibrators designed for fast, accurate test results
  • Make precise pressure measurements from ±10 inH2O/20 mbar to 10,000 psi/690 bar
  • Highly accurate; 0.05% measurement uncertainty for 1 year
  • Easily view in most environments with bright backlit display
  • Take your gauge anywhere with a rugged protective holster

$ 1,352.69 1352.691 USD $ 1,502.99

Not Available For Sale

($ 0.00 / Units)
  • Brand

This combination does not exist.

1000 PSIG Pressure Calibrators Fluke
Contact Us
Fluke


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

Fluke

700G07 FLUKE-700G07 Pressure Gauge, 500 PSIG

Fluke 700G08 Pressure Gauge, 1,000 PSIG

Details

Portable, Precise, and Built for Field Calibration

Your Go-To Solution for Field Pressure Calibration

The Fluke 700G Series Pressure Gauge Calibrators are engineered specifically for field professionals who need rugged, accurate, and easy-to-use pressure measurement on the job. With a reputation for reliability and performance, the Fluke 700G is the ideal Fluke pressure gauge for demanding calibration and test applications.

Key Features of the Fluke 700G

  • Extensive Pressure Range – Choose from 23 different models, covering ±10 inH2O/20 mbar up to 10,000 psi/690 bar. Whatever your field calibration needs, there’s a Fluke 700G pressure gauge that fits.
  • High Accuracy – Standard accuracy is 0.05% of full scale. Reference class models deliver an impressive 0.04% of reading measurement accuracy, ensuring you always meet the most stringent requirements.
  • Pressure Data Logging – Store up to 8,493 pressure measurements for later review. Use the 700G/TRACK software to upload, analyze, and report results right from your PC.
  • Rugged Field Design – Fluke 700G pressure gauges are housed in a sealed IP67 enclosure and come with a protective holster. They are certified as intrinsically safe (CSA: Class 1, Div2, Groups A-D and ATEX: II 3 G Ex ic IIB T6 Gc), so you can work safely in hazardous or explosive environments.
  • Long-Term Reliability – Every Fluke 700G pressure gauge is backed by a standard 3-year warranty for your peace of mind.

Simple, Complete Pressure Calibration—No Compromises

  • Effortless Operation – Power on, connect to your pressure device, and read measurements instantly. No complex menus or setup—just fast, accurate pressure calibration in the field.

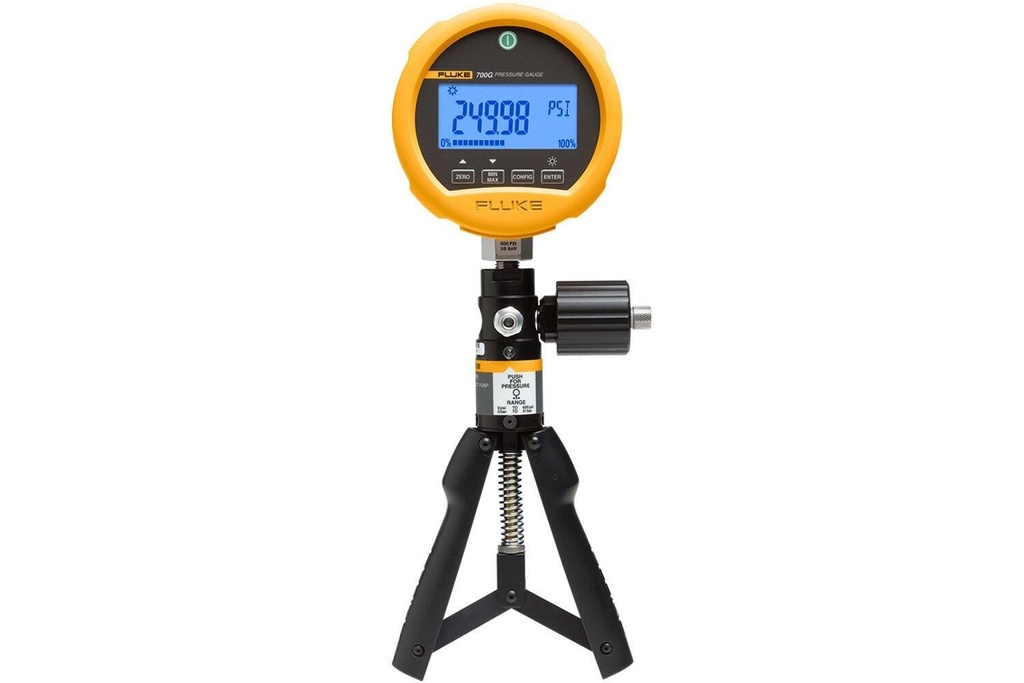

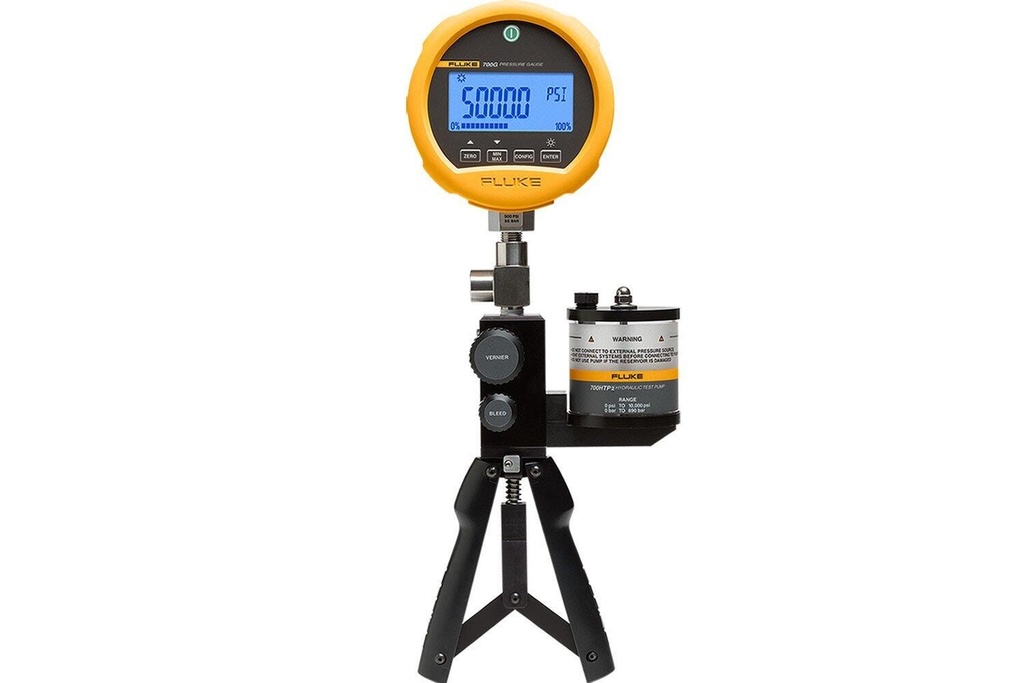

  • Complete Solution with Pump Kits – Pair your Fluke 700G pressure gauge with the Fluke 700PTPK pneumatic or 700HTPK hydraulic pump kits for a complete sourcing and measurement solution. Premium pump kits (700PTPK2 and 700HTPK2) feature easy, no-tools-required connections for both the gauge and device under test.
  • Versatile Calibration – Calibrate to 600 psi (20 bar) with the 700PTPK or 700PTPK2 pneumatic pump kit. Handle higher pressures using compatible hydraulic pump solutions.

Built for Field Professionals

  • Portable and Lightweight – Take your Fluke pressure gauge anywhere. Designed for durability and ease of use in the harshest environments.
  • Safe and Certified – Intrinsically safe certifications let you work confidently in classified areas where explosive gases may be present.
  • Easy Connectivity – Premium kits provide “no tools required” setup for fast and secure calibration in the field.

Trust the Fluke 700G Series Pressure Gauge Calibrators for unmatched performance, ruggedness, and reliability. When accuracy and efficiency matter most, choose the Fluke 700G—your field calibration solution.

What's in the box:

  • Fluke 700G Pressure Gauge Calibrator
  • Traceable certificate of calibration
  • 1/4˝ NPT to 1/4˝ ISO adapter

Key Features

  • Precision pressure gauge calibrators designed for fast, accurate test results
  • Make precise pressure measurements from ±10 inH2O/20 mbar to 10,000 psi/690 bar
  • Highly accurate; 0.05% measurement uncertainty for 1 year
  • Easily view in most environments with bright backlit display
  • Take your gauge anywhere with a rugged protective holster

Specifications

700R Ranges: Temperature Compensation 0 e °C to 50 °C (32 °F to 122 °F) to rated accuracy.
For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005% FS/ °C
ModelRangeResolutionAccuracyBurst Pressure
Fluke-700G01-10 to +10 inH2O
-20 mbar to 20 mbar		0.001 inH2O,
0.001 mbar		Positive pressure ±0.1% of range,
Vacuum ±0.1% of range		3 psi,
210 mbar
Fluke-700G02-1 to +1 psi,
-70 mbar to 70 mbar		0.0001 psi,
0.001 mbar		Positive pressure ±0.1% of range,
Vacuum ±0.1% of range		5 psi,
350 mbar
Fluke-700G04-14 to 15 psi,
-0.97 to 1 bar		0.001 psi,
0.0001 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		60 psi,
4 bar
Fluke-700G05-14 to 30 psi,
-0.97 to 2 bar		0.001 psi,
0.0001 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		120 psi,
8 bar
Fluke-700G06-12 to 100 psi,
-0.83 to 6.9 bar		0.01 psi,
0.0001 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		400 psi,
26 bar
Fluke-700G27-12 to 300 psi,
-0.83 to 20 bar		0.01 psi,
0.001 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		1200 psi,
80 bar
Fluke-700G07-12 to 500 psi,
-0.83 to 34 bar		0.01 psi,
0.001 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		2000 psi,
138 bar
Fluke-700G08-14 to 1000 psi,
-0.97 to 69 bar		0.1 psi,
0.001 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		4000 psi,
266 bar
Fluke-700G10-14 to 2000 psi,
-.97 bar to 140 bar		0.1 psi,
0.01 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		8000 psi,
550 bar
Fluke-700G29-14 to 3000 psi,
-0.97 to 200 bar		0.1 psi,
0.01 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		10000 psi,
690 bar
Fluke-700G30-14 to 5000 psi,
-0.97 to 340 bar		0.1 psi,
0.01 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		10000 psi,
690 bar
Fluke-700G31-14 to 10000 psi,
-0.97 to 690 bar		1 psi,
0.01 bar		Positive pressure ±0.05% FS
Vacuum ±0.1% FS		20000 psi,
1035 bar
Fluke-700GA40 to 15 psia,
0 to 1 bar absolute		0.001 psi,
0.0001 bar		±0.05% of range60 psi,
4 bar
Fluke-700GA50 to 30 psia
0 to 2 bar absolute		0.001 psi,
0.0001 bar		±0.05% of range120 psi,
8 bar
Fluke-700GA60 to 100 psia,
0 to 6.9 bar absolute		0.01 psi,
0.0001 bar		±0.05% of range400 psi,
27 bar
Fluke-700GA270 to 300 psia,
0 to 20 bar absolute		0.01 psi,
0.001 bar		±0.05% of range1200 psi,
80 bar
Fluke-700RG05-14 to +30 psi,
-0.97 to +2 bar		0.001 psi,
0.0001 bar		Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.05% of range		90 psi,
6 bar
Fluke-700RG06-12 to 100 psi,
-0.83 to 6.9 bar		0.01 psi,
0.0001 bar		Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		400 psi,
27 bar
Fluke-700RG07-12 to 500 psi,
-0.83 to 34		0.01 psi,
0.001 bar		Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		2000 psi,
138 bar
Fluke-700RG08-14 to 1000 psi,
-0.97 to 69 bar		0.1 psi,
0.001 bar		Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		4000 psi,
275 bar
Fluke-700RG29-14 to 3000 psi,
-0.97 to 200 bar		0.1 psi,
0.01 bar		Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		10000 psi,
690 bar
Fluke-700RG30-14 to 5000 psi,
-0.97 to 340 bar		0.1 psi,
0.01 bar		Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		15000 psi,
1035 bar
Fluke-700RG31-14 to 10000 psi,
-0.97 to 690 bar		1 psi,
0.01 bar		Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		20000 psi,
1380 bar

Media compatibility

10 inH 2 O, 1, 15, 30 psi: any clean dry non-corrosive gas 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.

Mechanical Specifications

  • Dimensions (H x W x D): 12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in)
  • Pressure connection: ¼ in NPT Male
  • Housing/Weight: Cast ZNAL 0.56 kg (1.22 lb) with holster
  • Display: 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100%
  • Power: Three (3) AA alkaline batteries
  • Battery life: 1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate

Additional specifications

  • Part #: 4097592
  • UPC: 0 95969 61109 1

Additional Information

Users Manual
Users Manual (700G Series)
Users Manual Supplement
Calibration Manual
Safety Sheet
Quick Reference Guide
Datasheet


Brand Fluke
700G-Series-Calibration-Manual-FLK_4097592.pdf
Download
700G-Series-Safety-Sheet-FLK_4097592.pdf
Download
700G-Series-Users-Manual-FLK_4097592.pdf
Download
700G-Series-Users-Manual-Supplement-FLK_4097592.pdf
Download
700G-TRACK-Users-Manual-FLK_4097592.pdf
Download
Fluke-700G-Series-Precision-Pressure-Test-Gauges-Datasheet-FLK_4097592.pdf
Download
Premium-Pressure-Accessory-Kit-Quick-Reference-Guide-FLK_4097592.pdf
Download
