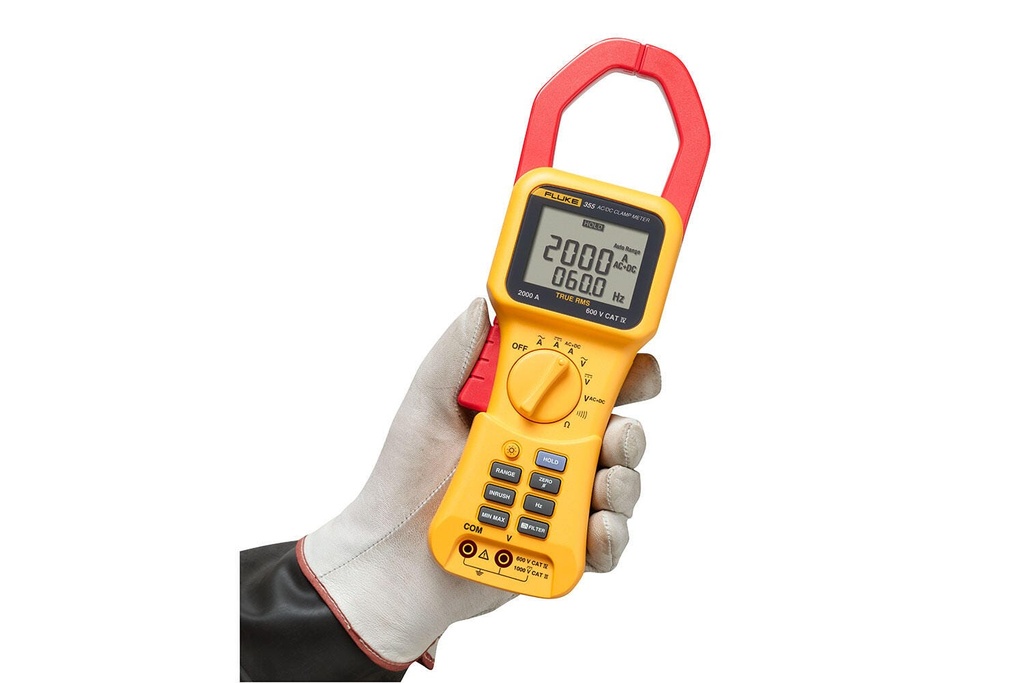

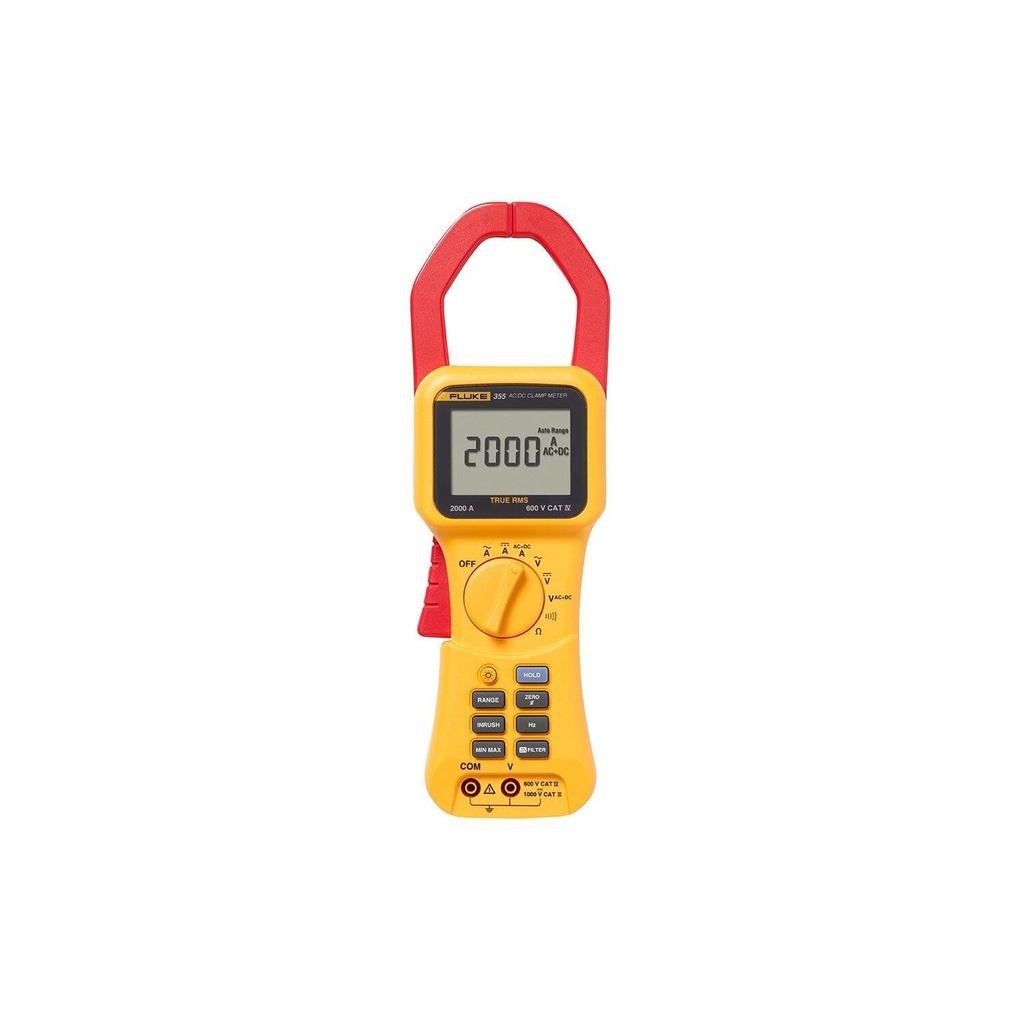

Fluke 355 True RMS 2000 A Clamp Meter

Details

Versatile and rugged clamp meter for high currents

Confidently take reliable readings with the True RMS Fluke 355 digital clamp meter, the tool of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.

Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads. The 355 also measures voltage and resistance, making this an ideal clamp meter for utilities, electrical contractors and industrial service technicians.

Easy to use all-in-one tool

• High voltage measurement of 1000 V AC + DC True RMS, 600 V AC, and 1000 V DC allows the user to perform multiple tests with only one tool
• Resistance to 400K ohms coupled with a continuity beeper provide the convenience of a multimeter in a clamp meter
• Accurately measure frequency up to 1 kHz for optimum troubleshooting
• Quickly analyze readings using the MIN, MAX, and AVG functions
• A large backlit display allows for easy visibility in low-lit areas
• Use the display hold feature to capture readings even when the display cannot be viewed
• Use the low-pass filter to smooth out noisy loads and stabilize readings

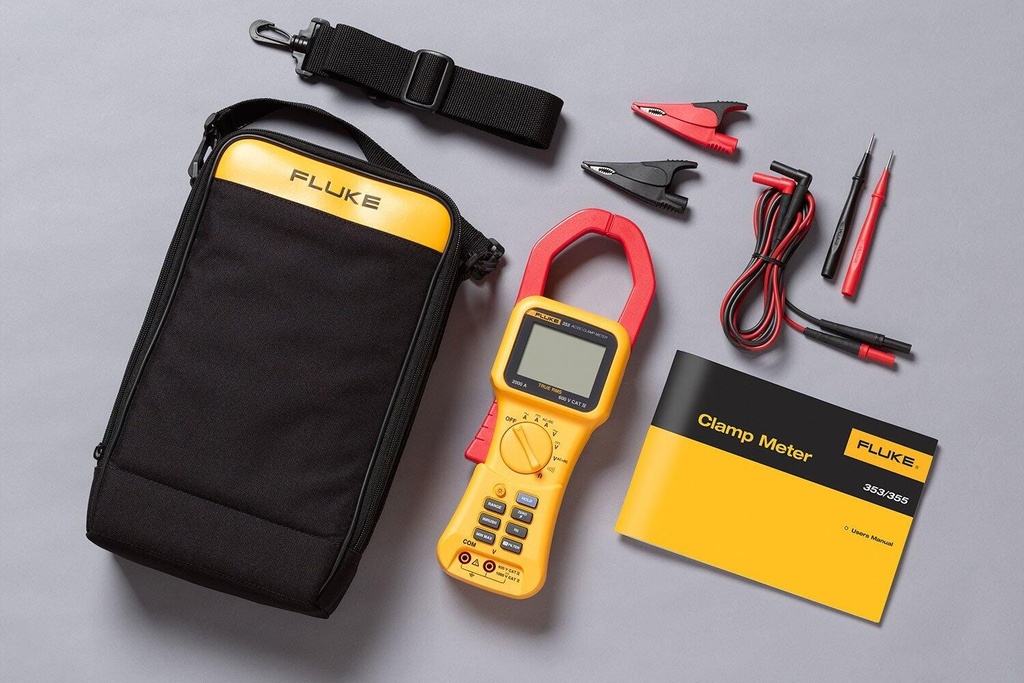

What's in the box:

• 355 2000 A Clamp Meter
• (1 pair) TL224 1.5 m silicone rubber test leads
• (1 pair) TP2 test probes
• (1 pair) AC285 alligator clips
• 6 AA batteries (Installed)
• C43 soft carrying case
• Quick Reference Guide

Key Features

• Reliably handle a wide range of high-current applications with 2000 A AC + DC True RMS, 1400 A AC, and 2000 A DC
• The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
• CAT IV 600 V, CAT III 1000 V rating for added user protection
• In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability

Specifications

Electrical Specifications

• Current measurement AC 10 Hz to 100 Hz - Range: 40 A / 400 A / 1400 AC rms
• Current measurement AC 10 Hz to 100 Hz - Resolution: 10 mA / 100 mA / 1 A
• Current measurement AC 10 Hz to 100 Hz - Accuracy: 40 A: 1.5% rdg + 15 digits; 400 A: 1.5% rdg + 5 digits; 1400 A: 1.5% rdg + 5 digits
• Current measurement AC 10 Hz to 100 Hz - Trigger level for Inrush: 0.50 A / 5.0 A / 5 A
• Current measurement AC 10 Hz to 100 Hz - Trigger level for Hz filter OFF: 2.50 A / 2.5 A / 8 A
• Current measurement AC 10 Hz to 100 Hz - Trigger level for Hz filter ON: 0.50 A / 2.5 A / 8 A
• Crest Factor (50/60 Hz) - Range: 40 A / 400 A / 1400 AC
• Crest Factor (50/60 Hz) - Crest Factor 1: 2 @ 33 A, 2.4 @ 27 A; 2 @ 330 A, 2.4 @ 270 A; 2 @ 1000 A, 2.4 @ 833 A
• Current measurement AC 100.1 Hz to 1 kHz - Range: 40 A / 400 A / 1400 AC rms
• Current measurement AC 100.1 Hz to 1 kHz - Resolution: 10 mA / 100 mA / 1 A
• Current measurement AC 100.1 Hz to 1 kHz - Accuracy: 40 A: 3.5% rdg + 15 digits; 400 A: 3.5% rdg + 5 digits; 1400 A: 3.5% rdg + 5 digits
• Current measurement AC 100.1 Hz to 1 kHz - Trigger level for Inrush: 0.50 A / 5.0 A / 5 A
• Current measurement AC 100.1 Hz to 1 kHz - Trigger level for Hz filter OFF: 2.50 A / 2.5 A / 8 A
• Current measurement AC 100.1 Hz to 1 kHz - Trigger level for Hz filter ON: 0.50 A / 2.5 A / 8 A
• Current measurement DC - Range: 40 A / 400 A / 2000 A
• Current measurement DC - Resolution: 0.01 A / 0.1 A / 1 A
• Current measurement DC - Accuracy: 40 A: 1.5% rdg + 15 digits; 400 A: 1.5% rdg + 5 digits; 2000 A: 1.5% rdg + 5 digits
• Voltage measurement AC 10 Hz to 100 Hz (600 V range has 10% over range to 660 V) - Range: 4 V / 40 V / 400 V / 600 V AC rms
• Voltage measurement AC 10 Hz to 100 Hz (600 V range has 10% over range to 660 V) - Resolution: 1 mV / 10 mV / 100 mV / 1 V
• Voltage measurement AC 10 Hz to 100 Hz (600 V range has 10% over range to 660 V) - Accuracy: 4 V: 1% rdg + 10 digits; 40 V: 1% rdg + 5 digits; 400 V: 1% rdg + 5 digits; 600 V: 1% rdg + 5 digits
• Voltage measurement AC 10 Hz to 100 Hz (600 V range has 10% over range to 660 V) - Trigger level for Hz filter OFF: 0.25 V / 6 V
• Voltage measurement AC 10 Hz to 100 Hz (600 V range has 10% over range to 660 V) - Trigger level for Hz filter ON: 0.25 V / 6 V
• Voltage measurement AC 100.1 Hz to 1 kHz (600 V range has 10% over range to 660 V) - Range: 4 V / 40 V / 400 V / 600 V ac rms
• Voltage measurement AC 100.1 Hz to 1 kHz (600 V range has 10% over range to 660 V) - Resolution: 1 mV / 10 mV / 100 mV / 1 V
• Voltage measurement AC 100.1 Hz to 1 kHz (600 V range has 10% over range to 660 V) - Accuracy: 4 V: 3% rdg + 10 digits; 40 V: 3% rdg + 5 digits; 400 V: 3% rdg + 5 digits; 600 V: 3% rdg + 5 digits
• Voltage measurement AC 100.1 Hz to 1 kHz (600 V range has 10% over range to 660 V) - Trigger level for Hz filter OFF: 0.050 V / 0.25 V / 6 V / 6 V
• Voltage measurement AC 100.1 Hz to 1 kHz (600 V range has 10% over range to 660 V) - Trigger level for Hz filter ON: 0.050 V / 0.25 V / 6 V / 6 V
• Voltage measurement DC - Range: 4 V / 40 V / 400 V / 1000 V
• Voltage measurement DC - Resolution: 0.001 V / 0.01 V / 0.1 V / 1 V
• Voltage measurement DC - Accuracy: 4 V: 1% rdg + 10 digits; 40 V: 1% rdg + 5 digits; 400 V: 1% rdg + 5 digits; 1000 V: 1% rdg + 5 digits
• Resistance measurement - Range: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ
• Resistance measurement - Resolution: 0.1 Ω / 1 Ω / 10 Ω / 100 Ω
• Resistance measurement - Accuracy: 1.5% + 5 digits
• Continuity beeper: On at ≤ 30 Ω; Off at ≥ 100 Ω
• Frequency measurement - Measurement range: 5.0 Hz to 1 kHz
• Frequency measurement - Resolution: 0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)
• Frequency measurement - Accuracy – 5.0 Hz to 100 Hz: 0.2% + 2 counts
• Frequency measurement - Accuracy – 100.1 Hz to 1 kHz: 0.5% + 5 counts
• Frequency measurement - Trigger level: Refer to current and voltage tables

1. Add 2% to error spec for CF > 2

General Specifications

• Batteries: Six 1.5 V AA NEDA 15 A or IEC LR6
• Battery life (with typical usage, backlight off): 100 hours
• Test leads: Rated to 1000 V
• Weight: .814 kg (1.8 lb)
• Jaw size: 58 mm (2.28 in)
• Dimensions (L x W x D): 300 x 98 x 52 mm (12 x 3.75 x 2 in)
• Safety rating: IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III

Environmental Specifications

• Operating temperature: 32°F to +122°F (0°C to +50°C)
• Storage temperature: -4°F to 140°F (-20°C to +60°C)
• Operating humidity: 0 to 95% (non-condensing)
• Operating altitude: 2000 m
• Storage altitude: 10,000 m
• IP rating: 42 (indoor use only)
• Drop test requirements: 1 m
• EMI, RFI, EMC: FCC part 15, IEC/EN 61326-1:1997 class B; IEC/EN 61326:1997 3 V/m, performance criteria B, EN61325
• Temperature coefficients - Current: 0.1% of reading per °C outside 22°C to 24°C
• Temperature coefficients - Voltage: 0.1% of reading per °C outside 22°C to 24°C

Additional specifications

• Part #: 2840265
• UPC: 0 95969 40120 3
