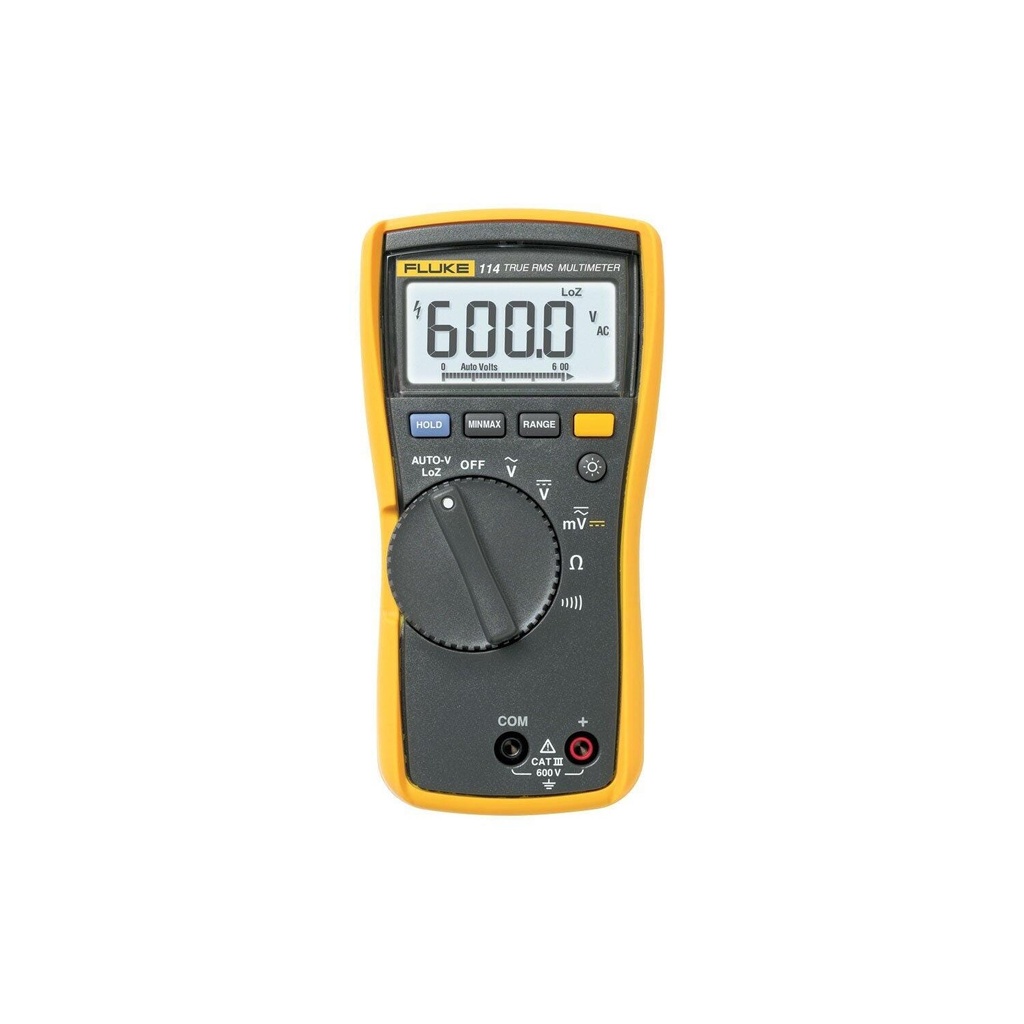

Fluke 114 Electrical Multimeter

Details

Fluke 114 digital multimeter is the ideal choice for go/no-go testing

Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.

The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. And its easy-open battery access door makes battery changes easy.

A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter.

Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments

Other useful features:

• Features a compact ergonomic design for one-handed operation
• Comes with an holster with probe holders for easy storage
• Features manual and automatic ranging
• Safety rates CAT III 600 V
• Fits into optional ToolPak™ magnetic hanger for hands-free operation

What's in the box:

• Fluke 114 Digital Multimeter
• (1 pair) Test leads
• Holster
• Installed 9 V battery
• Quick reference guide

Key Features

• Ideal Digital Multimeter for “go/no-go” testing
• Features AutoVolt automatic AC/DC voltage selection
• Includes low input impedance to help prevent false readings due to ghost voltage
• Presents a large white LED backlight for working in poorly lit areas
• Measures resistance and continuity
• Provides Min/Max/Average with elapsed time to record signal fluctuations

Specifications

• Maximum voltage between any terminal and earth ground: 600 V
• Safety: IEC 61010-1: Pollution Degree 2; IEC 61010-2-033: CAT III 600V
• Display: Digital: 6,000 counts, updates 4 per second
• Bar graph: 33 segments, updates 32 per second
• Operating temperature: -10°C to + 50°C
• Storage temperature: -40°C to + 60°C
• Battery type: 9 volt Alkaline, IEC 6LR61
• Battery life: 400 hours typical, without backlight

Accuracy specifications

• DC millivolts - Range/resolution: 600.0 mV / 0.1 mV
• DC millivolts - Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
• DC volts - Range/resolution: 6.000 V / 0.001; V60.00 V / 0.01; V600.0 V / 0.1 V
• DC volts - Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
• Auto volts - Range/resolution: 600.0 V / 0.1 V
• Auto volts - Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz); 4.0% + 3 (500 Hz to 1 kHz)
• AC millivolts 1 True RMS - Range/resolution: 600.0 mV / 0.1 mV
• AC millivolts 1 True RMS - Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz); 2.0% + 3 (500 Hz to 1 kHz)
• AC volts 1 True RMS - Range/resolution: 6.000 V / 0.001; V60.00 V / 0.01; V600.0 V / 0.1 V
• AC volts 1 True RMS - Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz); 2.0% + 3 (500 Hz to 1 kHz)
• Continuity - Range/resolution: 600 Ω / 1 Ω
• Continuity - Accuracy: Beeper on 250 Ω detects opens or shorts of; 500 μs or longer.
• Ohms - Range/resolution: 600.0 Ω / 0.1 Ω; 6.000 kΩ / 0.001 kΩ; 60.00 kΩ / 0.01 kΩ; 600.0 kΩ / 0.1 kΩ; 6.000 MΩ / 0.001 MΩ
• Ohms - Accuracy: 0.9% + 1
• Ohms - Range/resolution: 40.00 MΩ / 0.01 MΩ
• Ohms - Accuracy: 5% + 2

1. All ac voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.

Mechanical & General Specifications

• Size: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
• Weight: 550 g
• Warranty: 3 years

Additional specifications

• Part #: 2538783
• UPC: 0 95969 32417 5
• Continuity — Accuracy: Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
• Weight: 1.2125 lb (0.55 kg)
