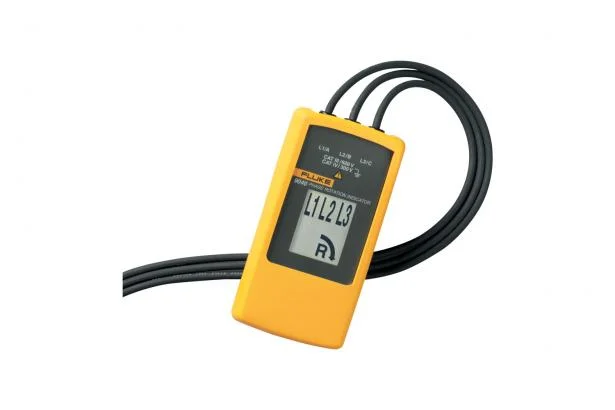

Fluke 9040 Phase Rotation Indicator
2435050 | FLUKE-9040
Fluke 9040 Phase Rotation Indicator
Model#: Fluke 9040
Part#: 2435050
UPC#: 0 95969 29136
Key features
- 3 phase indication
- Indication of phase rotation
- Clear LCD display
- No battery required
Product overview: Fluke 9040 Phase Rotation Indicator
Phase rotation indicator with high voltage capability for industrial applications
The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Specifications: Fluke 9040 Phase Rotation Indicator
| Technical Specifications | |
| Voltage Range | 40-700 V |
| Frequency Range | 15-400 Hz |
| Operating Timer | Continuous |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C |
| Dust/Water Resistance | IP 40 |
| Safety Specifications | |
| Electrical Safety | EN 61010, |
| EN 61557-7 | |
| Overvoltage category | CAT III, 600 V |
| CAT IV, 300V | |
| Mechanical and General Specifications | |
| Size | 124 x 61 x 27 mm |
| Weight | 200 g |
| Power supply | From unit under test |
| Warranty | 2 years |
| Brand | Fluke |
