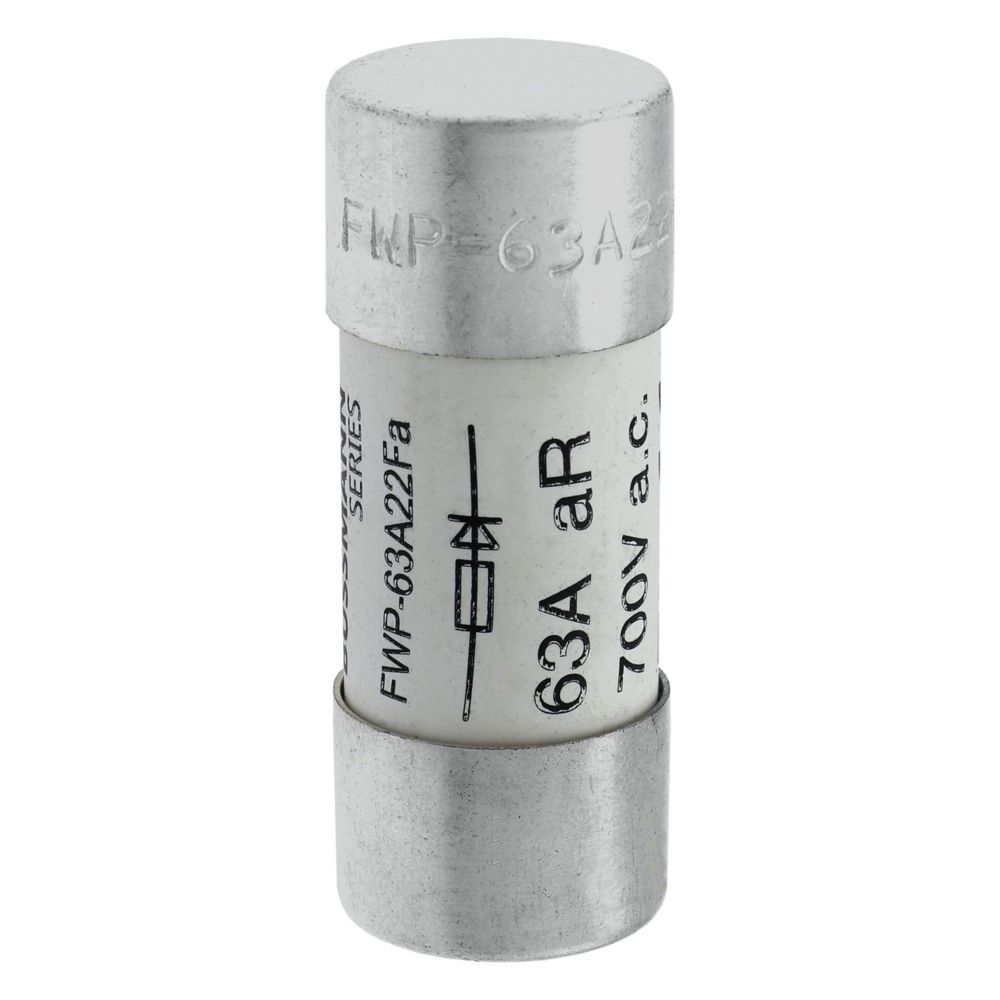

Eaton Bussman FWP-63A22F/FWP-63A22FA high speed fuse
FWP-63A22F | 700 Vac, 700 Vdc (UL), 63A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic 22 x 58 mm (7/8” x 2 9/32”)
FWP-63A22F
Eaton Bussmann series FWP high speed fuse, 700 Vac, 700 Vdc (UL), 63A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Product specifications
GENERAL SPECIFICATIONS
- PRODUCT NAME: Eaton Bussmann series high speed cylindrical fuse
- CATALOG NUMBERFWP-63A22FUPC051712796576EAN5027590501019
- PRODUCT LENGTH/DEPTH58 mm
- PRODUCT HEIGHT23 mm
- PRODUCT WIDTH23 mm
- PRODUCT WEIGHT: 62.6 g
- WARRANTY: Not Applicable
- COMPLIANCES: CE Marked RoHS Compliant
- CERTIFICATIONS: UL Recognized CSA Certified
PRODUCT SPECIFICATIONS
- TYPE: High speed fuse
- APPLICATION: Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
- AMPERAGE RATING: 63 A
- BREAKING CAPACITY: 200 kA
- FREQUENCY RATING - MAX62 Hz
- FREQUENCY RATING - MIN45 Hz
- FUSE INDICATOR: Non Indicating
- RELEASE CHARACTERISTIC: Other
- UTILIZATION CATEGORY: aR (accompanied semiconductor protection)
- VOLTAGE TYPE: AC/DC
- FUSE SIZE: 22 x 58 mm
- CLASS: Class aR
- CLEARING (I2T)4000
- WATT LOSSES: 15 W
- FUSE SHAPE: Cylindrical
- MINIMUM MELTING: 280 I2t (A2 sec)
- PRE ARC (I2T)280
- USED WITH: Finger safe holders/blocks and striker
- COLOR: White
- INTERRUPT RATING: 200 kA
- ICCONNECTION: Ferrule end x ferrule end
- CONSTRUCTION SIZE: 22 mm x 58 mm
- MATERIAL: Ceramic
- PACKAGING TYPE: Standard
- QUANTITY: 10
- VOLTAGE RATING: 700 V
- FUSE TYPE: FWP-A22F
