CA635F

Eaton Cooper Power series cable adapter, Voltage rating: 35 kV, Operating interface: 600A, Min cable ins. diameter: 0.980", Max cable ins. diameter: 1.115"

 Product specifications

Cable adapter

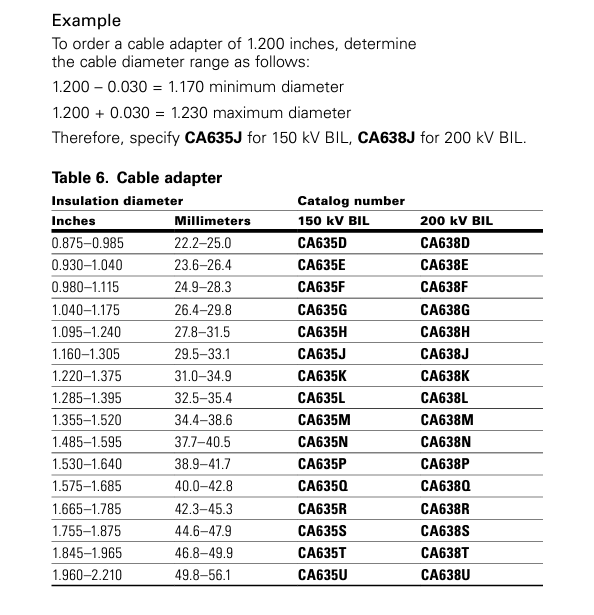

The molded cable adapter is available in sizes to fit cables from 0.875 to 2.36 inches in diameter (22.2 to 49.9 mm). Molded of highquality peroxide EPDM cured insulation and semi-conductive rubber to provide stress relief for terminated cable. Cable adapter To order cable adapters, refer to Table 6. These cable adapters are for use on the BOL-T, BT-TAP, T-OP II, and PUSH-OP  connector systems. Determine the cable diameter over the high-voltage insulation  and specify the catalog number using Table 6. Insulation  diameter must fall within the range of the appropriate cable  adapter as cable diameter can vary ± 0.030-inch.

General specifications

• Product Name: Eaton Cooper Power series cable adapter
• Catalog Number: CA635F
• UPC: 194006055376
• Product Height: 7 in
• Product Diameter: 2.5 in
• Product Weight: 1.1 lb
• Compliances: Not Applicable
• Certifications: IEEE 386

Product specifications

• Type: Cable adapter
• With cap: No
• Operating Interface: 600A
• Voltage rating: 35 kV
• Cable Insulation Diameter – Max: 1.115 in
• Cable Insulation Diameter – Min: 0.98 in
