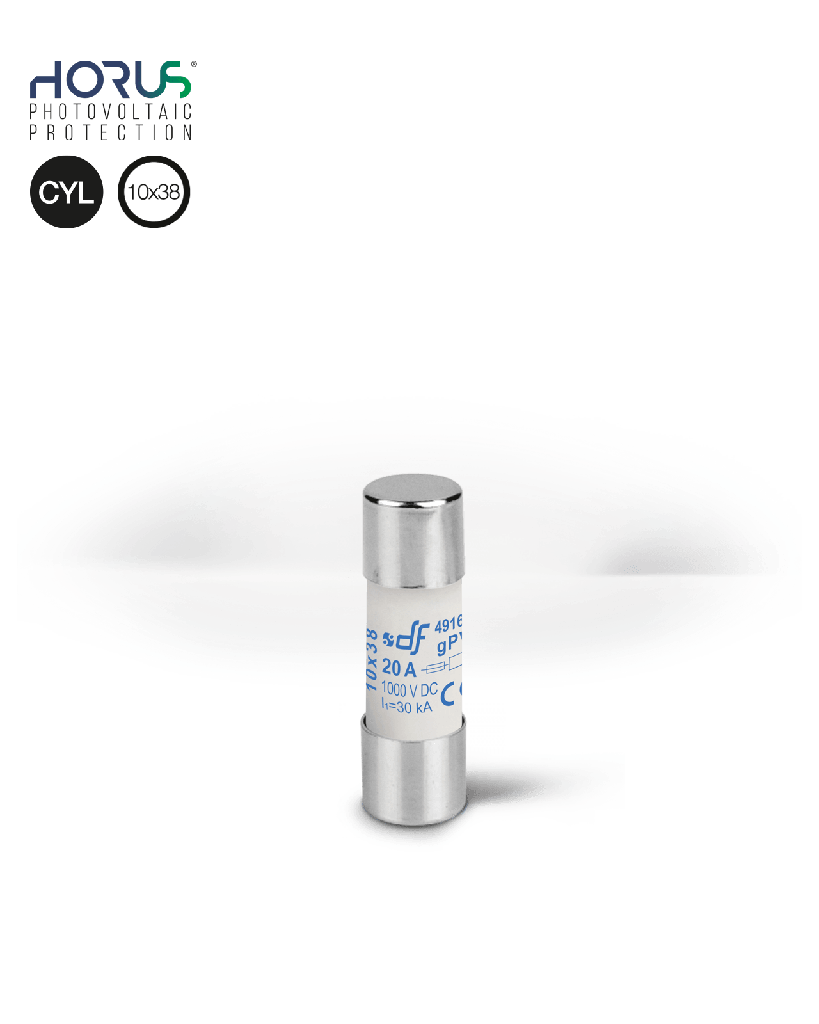

DF Electric 491606 10x38 1000Vdc 5 A
Technical data
| Rated voltage | 1000V DC |
| Rated currents | 1A...20A |
| Rated breaking capacity | 30 kA |
| Operating class | gPV |
| Minimum interrupt rating | 1A > 1,45·In 2...20A > 1,35·In |
| Non fusing current | 1,13·In |
| Storage temperature | -40°C ... 90°C |
| Operating temperature * | -40°C ... 80°C |
| * For ambient temperatures higher than 25ºC it is necessary to apply a derating in maximum current. |
Standards
IEC/EN 60269-1 Fuse links – general requirements
IEC/EN 60269-6 Fuse links for solar photovoltaic systems
UL248-19 Photovoltaic fuse links
RoHS Compliant
Dimensions
| A | B | C |
| 10,3 | 38 | 10 |
