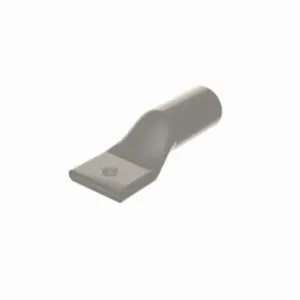

Burndy YA36A8, 600 kcmil Al Compression, 1-Hole, 1/2" Stud, AL9CU
YA36A8, Al Compression, 1-Hole, 1/2" Stud, AL9CU
Brand: Burndy
Catalog ID:YA36A8
AL Terminal, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™ A13, End Cap, UL/CSA, 90°C, Up to 35kV, Color Code, Die Index.
- UL486A-486B Listed and CSA Certified
- Aluminum terminals are dual rated to accommodate both copper and aluminum wire and are indicated with AL-CU on the connector - AL9CU is UL Listed 90°C, up to 35kV, AL7CU is UL Listed 75°C, up to 35kV
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with wire size, die index, color code, and crimp location bands
- Factory pre-filled with PENETROX Type A13 oxide inhibitor
- Color coded end caps are factory inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
- Aluminum oxidation is not easily detected but causes resistance in a connection, it is imperative the proper preparation takes place prior to making an aluminum-to-aluminum connection
General
Application
Wire Termination
Catalog Number
YA36A8
Color Code
Black
Connector Type
DUAL RATED
Die Index
473
EU RoHS Indicator
Contact Manufacturer
Feature - Barrel Style
Chamfered
Feature - Barrel Type
Standard
Finish Type
Electro Tin plated
Material
ALUMINUM
Number of Holes
1
Physical Attribute - Number of Holes
1
Physical Attribute - Tongue Type
Standard
Plated
Y
Plating Type
Tin - Electro Plated
Sub Brand
HYLUG
Temperature Rating
194
Trade Name
HYLUG™
Type
YA-A
UPC
781810129555
UPC 14 Digit GTIN
Dimensions
Dimension - B Length fraction
2-1/2 in
Dimension - B Length inch
2.47 in
Dimension - Bolt Hole Size inch
1/2
Dimension - Bolt Size fraction
1/2
Dimension - Bolt Size inch
0.56
Dimension - D inch
1.69 in
Dimension - Hole Size fraction
1/2
Dimension - Hole Size inch
0.56
Dimension - L Length Overall mm
143 mm
Dimension - Length Overall inch
5.64 in
Dimension - N inch
0.69 in
Dimension - Outside Diameter inch
1.44 in
Dimension - Pad Width inch
1.97 in
Dimension - Z (inch)
1.00 in
Package Height
Package Length
Package Weight
Package Width
Physical Attribute - Tongue Angle
Straight
Electrical Ratings
Voltage - Maximum
35000
Voltage Rating
35 kV
Conductor Related
Conductor - AL Str Size
600 KCMIL
Conductor - AL Str Size Range
600 kcmil
Conductor - Copper Str Size
600 KCMIL
Conductor - Copper Str Size Range
600 kcmil
Conductor - Material
ALUMINUM / COPPER
Conductor Size
600 KCMIL
Conductor Type
CODE
Wire Size
600 KCMIL
Certifications And Compliance
Certification - CSA Approved
Yes
Certification - cULus
No
Certification - ETL
No
Certification - UL Recognized
No
EU RoHS Indicator
Contact Manufacturer
Industry Standard(s)
UL 486A-486B
Standards - Industry Standards Met
UL 486A-486B
Standards - RoHS Compliance Status
CM
UL Listed
Yes
Operational
Temperature Rating
194
Configuration
Connector Type
DUAL RATED
Number of Holes
1
Physical Attribute - Number of Holes
1
Logistics
Carton Quantity
16
Minimum Pack Quantity
2
Pallet Quantity
1
