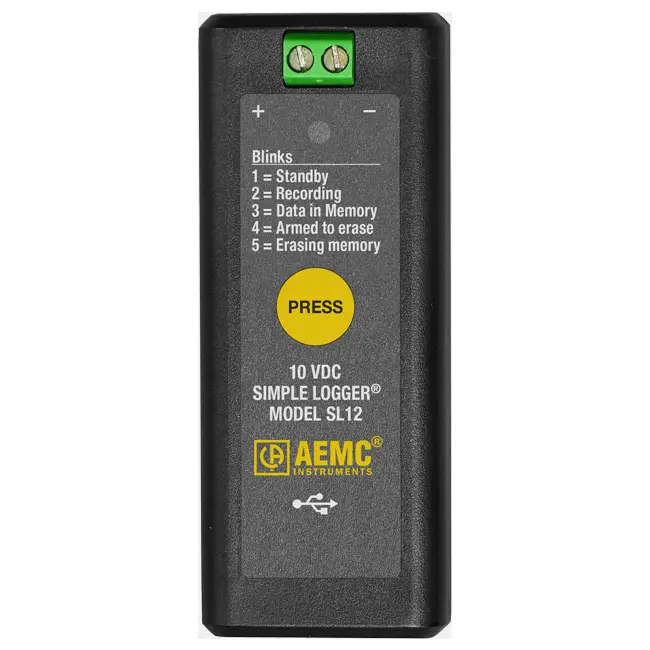

Simple Logger® Model SL12

The Simple Logger® Model SL12 is a small one channel recording device powered by two AA alkaline batteries. It can also be powered by 5 V using the USB interface cable supplied. The input is (0 to 10) VDC facilitated by two screw terminals. Sample rate is 16/sec with a storage rate of once per second of the average of all the samples. Application software is included with the unit by plugging it into your computer using the USB cable and downloading it from our web site. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed.

The main advantage of the logger is its ability to begin recording with only the need to configure the length of time for the recording. A simple one button operation is all you need. The front panel LED alerts the operator of the logger’s status.

Specifications

Channels	One
Input	Screw connector
Range	(-10 to 10) VDC
Accuracy (50/60Hz)	±(0.5 % R +50 mV) with filter set to 10
Resolution	10 mV
Maximum Input Voltage	60 VDC
Input Impedance	800 kΩ
Sample Rate	16 samples/second
Storage Rate	1 second
Storage Modes	Start/Stop
Recording Length	≥ 43 days
Memory	4 million measurements (8MB). Recorded data is stored in non-volitile memory and will be retained even if battery is low or removed.
Communication	USB 2.0 (Simple Logger software free to download from web site)
Power Source	(2) 1.5 V AA (LR6) alkaline batteries or USB 5VDC When powered by USB, the battery is automatically disconnected.
Battery Life	43 days with new batteries when recording
Low Battery	Battery voltage display in software (Batteries need replacement when the LED is dim or does not blink)
Dimensions	(3.6 x 1.44 x 1.32) in (91.44 x 36.58 x 34.8) mm
Weight (with battery)	3.5 oz (99 g)
Case	Polycarbonate
Operating Temperature	(14 to 122)°F (-10 to 50) °C
Storage Temperature	(-4 to 140) °F (-20 to 60) °C
Relative Humidity	Up to 85 % @ 95 °F (35 °C)
Ingress Protection (IP)	IP40
EMC	EN 61326-1
Safety Compliance	IEC 61010-1
