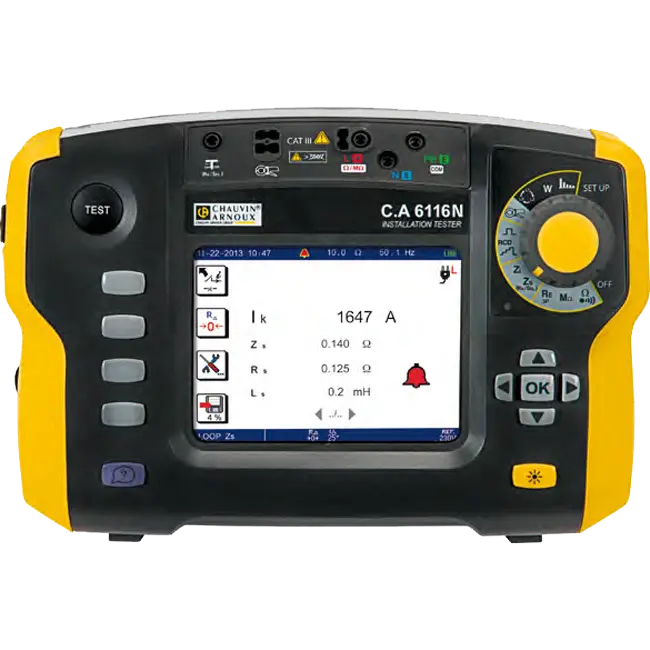

Multi-Function Installation Tester Model C.A 6116N – Multi-Function Installation Model C.A 6116N

Specifications

• I Rated • Range • Resolution: I > 200 mA • 39.99 Ω • 0.01Ω ± (1.5 % of R + 2 cts) 12 mA • (39.99 and 399.9) Ω • (0.01 and 0.1) Ω •± (1.5 % of R + 5 cts) with beep
• Range • Resolution • Accuracy: 4 kΩ • 1 Ω • ±(1.5 % of R + 5 cts) (40 to 400) kΩ • (10 - 100) Ω • ±(1.5 % of R + 2 cts)
• Rated Voltage: U test: (50, 100, 250, 500, and 1000) VDC
• Range • Resolution • Accuracy: 0.01 MΩ to 2 GΩ • 0 kΩ to 1 MΩ • ± (5 % of R + 3 cts)
• Short Circuit Current: ≤ 3 mA
• Range • Resolution • Accuracy: (0.50 to 40) Ω • 0.01 Ω • ± (2 % of R + 10 cts) (40 Ω to 15 kΩ) • (0.1 to 1) Ω • ± (2 % of R + 2 cts ) (15 to 40) kΩ • 10 Ω • ± (10 % of R + 2 cts )
• Others: Measurement of resistance of auxiliary stakes RH & RS (up to 40 kΩ)
• Ufk: Complies with SEV 3569
• Range Resolution Accuracy: (0.20 to 39.99) Ω (40 to 399.9) Ω (0.01 – 0.1) Ω ± (10 % of R + 10 cts) (ISel via clamp)
• Live Ground Installation Voltage Frequecy: (90 to 500) V (15.8 to 17.5) Hz (45 to 65) Hz
• Others: Measurement of the resistive and inductive components of Zs and Zi impedances
• Installation Voltage Frequency: (90 to 500 ) V (15.8 to 17.5) Hz and (45 to 65) Hz
• IΔn: 10/30/100/500/650/1000 (90 to 280) V or variable ramp and pulse test
• N-Trip Test: At ½ IΔn – Duration 1000 ms or 2000 ms
• Ramp Mode: 0.2 to 0.5 x IΔn(Uf) / 0.3 x IΔn to 1.06 IΔn increments of 3.3% x IΔn
• Trip test: R: Range / Resolution / Accuracy: 0.2 to 0.5 x IΔn(Uf) / 0.5 x IΔn / 2 x IΔn(selective) / 5 x IΔn Pulse: 0 to 500ms/0.1 and 1ms / 2ms, Ramp mode: 0 to 200ms / 0.1ms / 2 ms
• Current by Current Probe C177A: 5.0 mA t0 199.9 A
• Current by Current Probe MN77: (1 mA*) 5.0 mA to 19.99 A
• Voltage: 0 to 550 VAC/DC / DC and (158 to 500) Hz
• Frequency: (10 to 500) Hz
• Phase Rotation: (20 to 500) VAC
• Active Power: (0 to 110) kW single phase – (0 to 330) kW three-phase Simultaneous display of voltage and current waveforms
• Harmonics: Voltage and Current up to 50th order THD-F / THD-R
• Display: Large 5.7 inch backlit graphic color LCD 320 x 240 pixels
• Storage/Communication: USB for data transfer to DataView ® software (included)
• Power Supply: Rechargeable Lithium-Ion 10.8 V, 5.8 A • h
• Battery Life: Up to 30 hours
• Protection: IP 53 / IK04
• EMC: IEC61326-1
• Electrical Safety: IEC61010-1 – 600 V CAT III 300 V CAT IV – IEC 61557
• Weight: 4.85 lb (2.20 kg)
