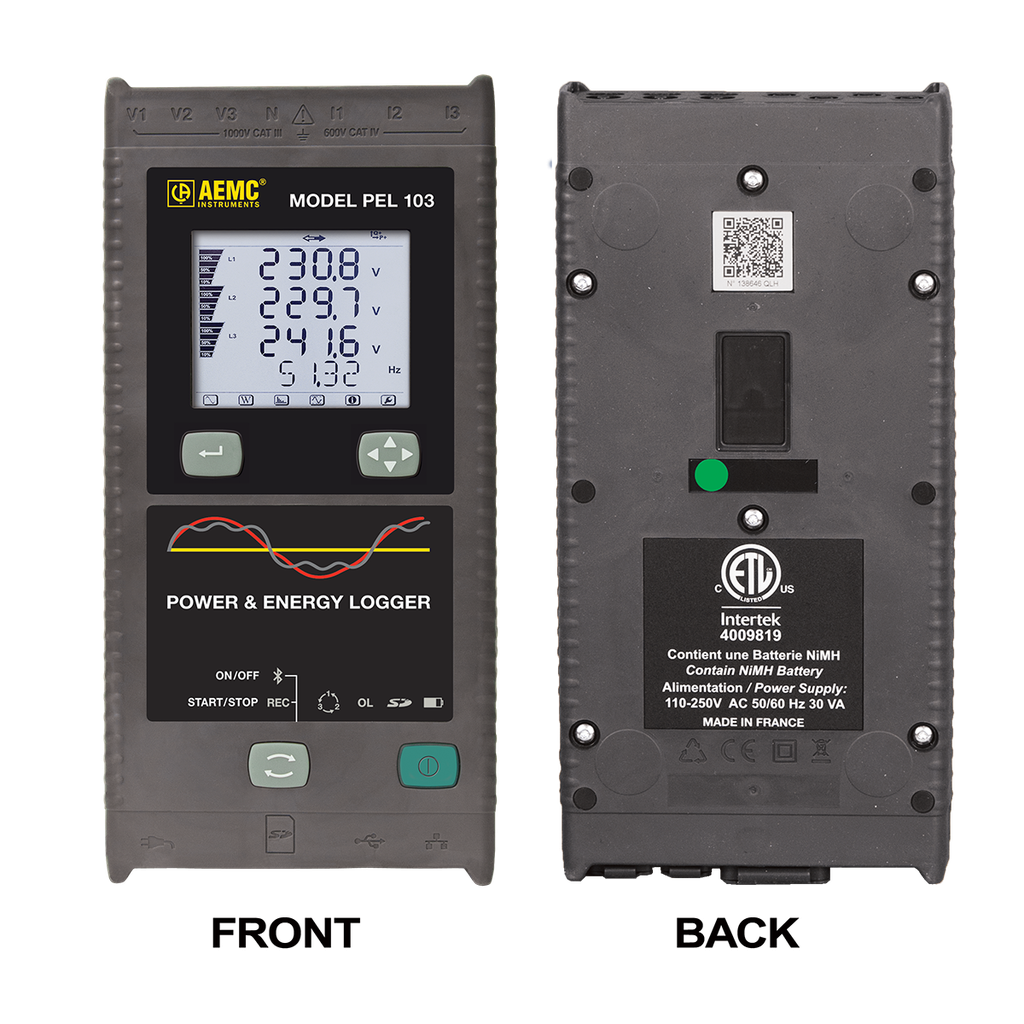

Power & Energy Logger Model PEL 103

The PEL 103 is a low cost, simple to use, single-, split-, and three- phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three True RMS voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.

The PEL 103 comes either with or without sensors, see model options and descriptions below.

Inputs	3 Voltage / 3 Current: calculation of neutral current
Sample Rate	128 per Cycle	6.4 kHz at 50 Hz	7.68 kHz at 60 Hz
Specification	Range	Measurement Range	Resolution	Accuracy (Typical)
Volt
Vrms	1000 V P to N	(10 to 1000) V	0.1 V	± 0.2 % Rdg + 0.2 V
Urms	1000 V P to P	(17 to 1700) V	0.1 V	± 0.2 % Rdg + 0.4 V
Amps @ 50 and 60Hz
Amps (1V nominal) (excluding clamp accuracy	Probe dependent	0.2 %< I < 120 % Inom	Probe dependent	±0.2 % Rdg + 0.02 % Inom
AmpFLEX & MiniFlex  (including sensor accuracy)	Range 100 A  Range 400 A Range 2 kA Range 10 kA	200 mA to 120 A (5 to 440) A (50 to 2400) A 400 A to 12 kA	1 mA 0.1 A (0.1 and 1 A) 1 A	± 1.2 % Rdg + 50 mA ± 1.2 % Rdg + 0.2 A ± 1.2 % Rdg + 1 A ± 1.2 % Rdg + 5 A
Frequency		(42.5 to 69) Hz	0.01 Hz	±0.1 Hz
Power
Watts (VA, var) P-Q-S	10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA	4 digits min	± 0.5 % Rdg + 0.005 % Pnom
Power Factor (Cos Φ/DPF)	-1  to 1	0.001	±0.05
Energy
kWh (kVAh, kvarh) P-Q-S	Up to 4 EWh / 4 Evarh / 4 EVAh (E = 1018 )	± 0.5 % Rdg
Harmonics	DC, 1 to 50
Volts & Amp %		(0.01 to 655.0) %	0.01 %	± 1 % Rdg from 1 to 25
THD		(0.00 to 655.0) %	0.01 %	± 1 % Rdg
General Features
Case	Design Rugged, shock proof with integrated protective holster, IP54 not included terminals. Shock and vibration IEC61010
Interface	Isolated USB, Bluetooth, and Ethernet, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included
Memory	8 GB SD card (SDHC compliant, FAT32 formatted)  32 GB max
Display	LCD with backlight
Real-Time Clock	Time and date stamp for Trend mode
Power	AC (110/230) V (50/60) Hz 15 VA; Battery backup when power OFF, 60 mintypical
Dimensions (L x W x H)	(10.08 x 4.92 x 1.46) in (256 x 125 x 37) mm
Weight	2.2 lbs (1 kg)
Altitude Operating	2000 m (6560 ft)
Operating Temperature	(32 to 108.5) °F; (0 to 42.5) °C from (10 to 85) % RH
Storage Temperature	(-4 to 122) °F; (-20°C to 50) °C from (0 to 75) % RH with battery pack
Electro-Magnetic-Compatibility (EMC)	EN 61326-1 for emission and immunity
IP Rating	IP54 per IEC 60529
Safety	IEC/EN 61010-1 (1000 V CAT III-600 V CAT IV), IEC 1326-1
