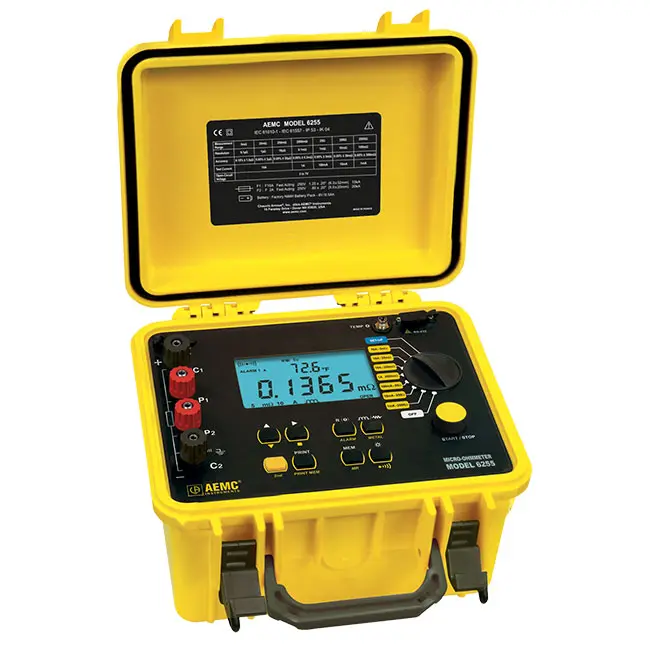

Micro-Ohmmeter Model 6255

The 10 A Micro-Ohmmeter Model 6255 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6255 is the most accurate Micro-Ohmmeter available, with results within 0.05%. It can test up to 60 minutes continuously at  10 A.

The Model 6255 is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer from a PC.

The DataView® Software included allows you to configure the instrument, store data and print reports.

▶ Learn how to properly connect leads to AEMC® Instruments Micro-Ohmmeters (Models 6240, 6250 & 6255)

• User Manuals
• Datasheets
• Brochures
• Rent Now
• Model
• Specifications
• Resources
• Accessories

Model 6255 (with leads) - Cat. #2129.84: Extra large tool bag, set of (2) 10 ft Kelvin Clips (10 A - Hippo), set of (2) 10 ft Kelvin Probes (1 A - Spring Loaded), RS-232 DB9 F/F 6 ft null modem cable, RS-232 to USB adapter, US 115 V power cord, NiMH rechargeable 6 V battery pack (installed in meter)*, Quick Start guide and a USB thumb drive with DataView® software and a user manual.

*Can be charged during operation

Specifications

Measurement Range
Range	Resolution	Accuracy @ 23 °C ± 5 °C	Measurement Current	Voltage Drop
5 mΩ	0.1 µΩ	±(0.15 % +1.0 µΩ)	10 A	50 mV
25 mΩ	1 µΩ	±(0.05 % +3 µΩ)	10 A	250 mV
250 mΩ	10 µΩ	±(0.05 % +30 µΩ)	10 A	2500 mV
2500 mΩ	0.1 mΩ	±(0.05 % +0.3 mΩ)	1 A	2500 mV
25 Ω	1 mΩ	±(0.05 % +3 mΩ)	100 mA	2500 mV
250 Ω	10 mΩ	±(0.05 % +30 mΩ)	10 mA	2500 mV
2500 Ω	100 mΩ	±(0.05 % +300 mΩ)	1 mA	2500 mV
Temperature Measurement	3 wire 100 Ω platinum RTD
Accuracy	±0.5 °C
Resolution	0.1 °C
Selectable Metal Type	Yes – Copper, Aluminum or Custom
Alarm Mode	Yes – 2 Alarms with High-Low trigger
Storage Memory	1500 tests, supplied with DataView® software for download and reporting
Battery	Rechargeable NIMH battery pack 6 V, 8.5 A•h
Battery Life: 10A	≥ 5000  tests typical
Battery Charger	120/240 VAC ± 20 % (45 to 400) Hz
Auto Power OFF	When battery voltage <5.0 V
Overload Protection	250 Vrms
Dimensions (L x W x H)	(10.70 x 9.76 x 7.18) in (272 x 248 x 182) mm
Weight	8.1 lbs (3.69 kg)
IP Rating	IP64 (with cover closed) IP53 (with cover open)
Altitude Operating	2000 m
Operating Temperature	(14 to 131) °F (-10 to 55) °C & (10 to 80) % RH
Storage Temperature (without battery)	(-40 to 140) °F (-40 to 60) °C & (10 to 90) % RH
Safety	IEC/EN 61010-1 50V CAT III Pollution 2
