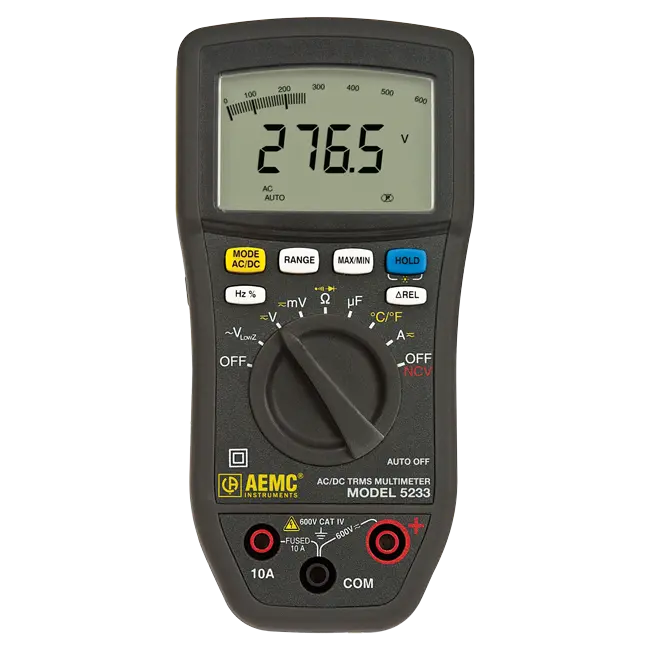

Digital Multimeter Model 5233

The Model 5233 is a rugged, economical TRMS digital multimeter with a function for non-electrical contact testing (NCV) function for detecting live electrical circuits. This multimeter is designed for safety: IEC61010, 600V CAT IV. The Multimeter Model 5233 provides a Volt, Ohm, Continuity, Diode, Capacitance, Frequency, Duty Cycle and Ammeter function, as well as an AC voltmeter with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It can measure up to 10 Amps directly and can measure temperature in both °C or °F using K-type thermocouples.

The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.

The Model 5233 is ideal for electrical installers, electricians and heating or air-conditioning specialists.

Specifications

• Counts: 6000
• Voltage AC/DC: 1000VAC/600VDC
• Current AC/DC: 10AAC/DC (15A for 60s max)
• Bandwidth AC: 1kHz
• Resistance: 60MΩ
• Frequency: 3kHz
• Capacitance: 1mF
• Continuity: <20Ω+3Ω
• Non-Contact Voltage: >90V
• Temperature (K-type TC): -4° to 1400°F (20° to 760°C)
• Diode Test: Yes
• V Low Z: Yes
• Duty Cycle: Yes
• ∆REL: Yes
• MIN/MAX/AVG/PEAK: MIN/MAX
• Display: Digital with 61-segment analog bargraph and backlighting
• Dimensions (HxWxD): 6.1 x 2.95 x 2.17" (155 x 75 x 55mm)
• Power Source: 9V alkaline battery
• Battery Life: >100 hours
• Operating Temperature: -4° to 158°F (-20° to 70°C)
• Storage Temperature: -32° to 122°F (-35° to 50°C)
• Pollution Degree: 2
• Ingress Protection (IP): IP54
• EMC: EN 61326/A2:2001
• Safety Compliance: IEC/EN 61010-1, 1000V CAT III, 600V CAT IV
• Weight: 0.69 lb (0.31 kg)
