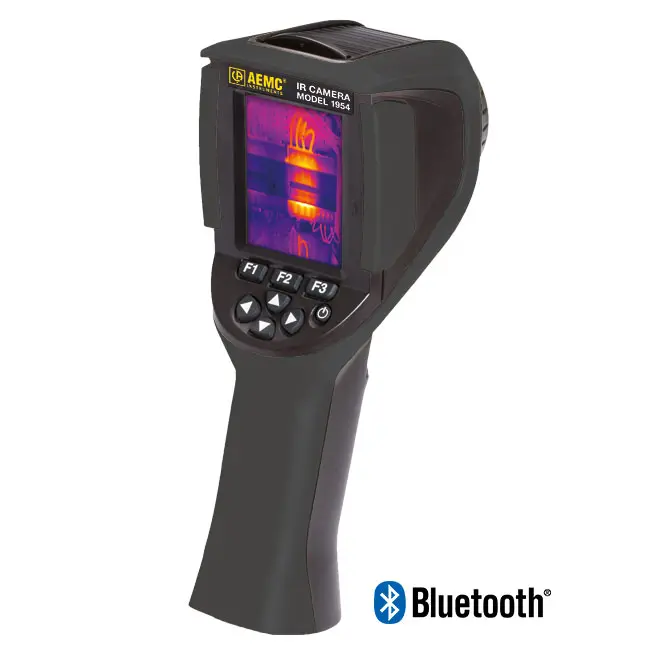

Thermal Imaging IR Camera Model 1954

The Thermal Imaging IR Camera Model 1954 is equipped with infrared thermography detection technology that has become an indispensable means ensuring safety in industrial production.

It is used in sectors of industry as diverse as metallurgy and steel-making, electric power, petroleum, automation, the exploitation of natural gas, and transportation, and in other committed professions such as fire-fighting and border surveillance.

Infrared thermal imaging provides a real-time non-contact inspection method. This detection method does not require you to shut off power, shut down the machines or interrupt production. It can diagnose latent malfunctions in advance, and so forestall their occurrence and prevent production incidents. Thermal imaging is an innovative non-contact evaluation technique that is safe, reliable, and rapid.

Our thermal imaging cameras communicate with other AEMC Bluetooth™ capable products.

Specifications

DETECTOR SPECIFICATIONS
Detector Resolution	120 x 160 pixels
Type	UFPA microbolometer, 8-14 µm
Frequency	9 Hz
Thermal Sensitivity (NETD)	80 mK @ 86 °F (30° C)
TEMPERATURE MEASUREMENT
Temperature Range	(-4 to 482) °F (-20 to 250) °C
Accuracy	± 3.6 ° F (±2 °C) or ± 2 % of Reading
INFRARED IMAGE
Field of View	(28 x 38) °
IFOV (Spatial Resolution)	4.1 mrad
Minimum Focus Distance	0.98 ft (0.3 m), fixed focus
VISUAL IMAGE
Resolution	480 x 640 pixels
Minimum Focus Distance	2 in (0.05 m), fixed focus
IMAGE PRESENTATION
Images Displayed	Infrared image, visual image with automatic parallax compensation. Merging of both images is possible with included PC software
LCD Screen	2.8 in (7.1 cm)
Freezing of Image	Animated or fixed image
Adjustment	Automatic or manual adjustment of palette min-max
Display Colors	Pseudo-colors, multiple palettes
FUNCTIONS FOR ANALYSIS
Measurement Tools	1 manual cursor + 1 automatic detection + Min-Max on adjustable area + temperature profile + Isotherm
Parameter Settings	Emissivity, environmental temperature, distance, relative humidity
Voice Recordings	Via Bluetooth headset (included)
External Measurements	AEMC current clamps 407, 607 and Multimeters MTX3292 and MTX3293 and logger models 1246 and 1821
LASER POINTER
Type	Class 2 645-655 nm power: 1 mW
GENERAL SPECIFICATIONS
Data Storage	2 GB micro SD card included (approx. 4,000 images) Replaceable with up to 32 GB SD card
Communication	USB link and Bluetooth
Tripod Mounting	1/4 in insert on camera (tripod not included)
Software	CAmReport software included, for data analysis and report generation
Power Supply	(4) 1.2 V AA NiMH rechargeable batteries with charger included
Battery Life	9 h typical (7 h minimum)
Operating Temperature	(-4 to 122) °F (-15 to 50) °C; 95 % RH
Storage Temperature	(-40 to 158) °F (-40 to 70) °C
Dimensions	(8.86 x 4.92 x 3.27) in (225 x 125 x 83) mm
Weight	24.7 oz (700 g) with batteries
Ingress Protection	IP 54
EMC	EN61326-1
Safety	IEC 61010-1 Ed. 02
