AEMC AC Line Splitter Model ALS-1 (2121.05)
SKU: 2121.05 | ALS-1

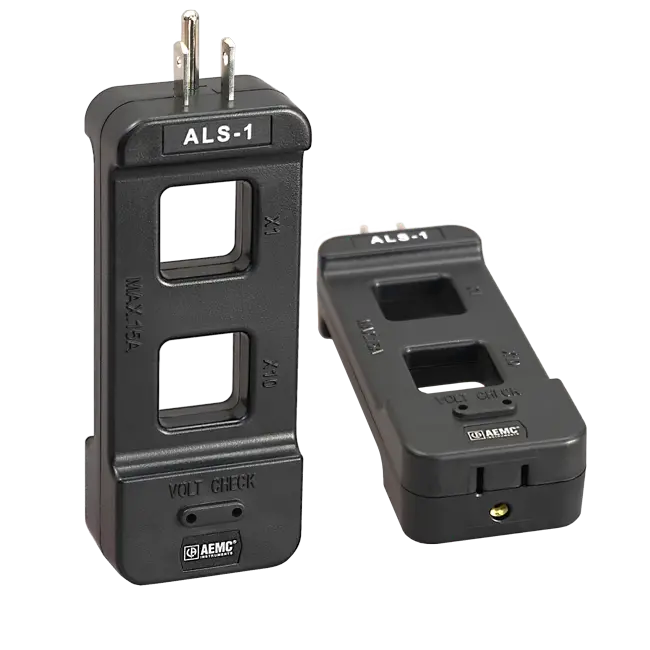

AC Line Splitter Model ALS-1
The AC Line Splitter Model ALS-1 increases the sensitivity of clamp-on current probes and clamp-on meters. The Model ALS-1 provides temporary separation of conductors (avoiding splitting of the line) to facilitate measurement of current. Simply plug the Model ALS-1 into a connector for a safe measurement. Two clamp positions are available: X1 for direct readings, and X10 for actual reading multiplied by 10. Also features voltage checking.
Specifications
| Operating Voltages | 120VAC – USA Standard Outlet Voltage |
| Operating Current | 15A Max |
| Current Monitoring | X1 (Direct) ; X10 (High Sensitivity - Direct Multiplied By 10) |
| Voltage Monitoring | Voltmeter Input Jacks To Measure Line Voltage |
| Power Supply | Powered By Active Outlet/Socket |
User Manuals
Model ALS-1
Datasheets
Model ALS-1 - English
Modelo ALS-1 - Español
Brochures
Application Notes
| Brand | AEMC |
