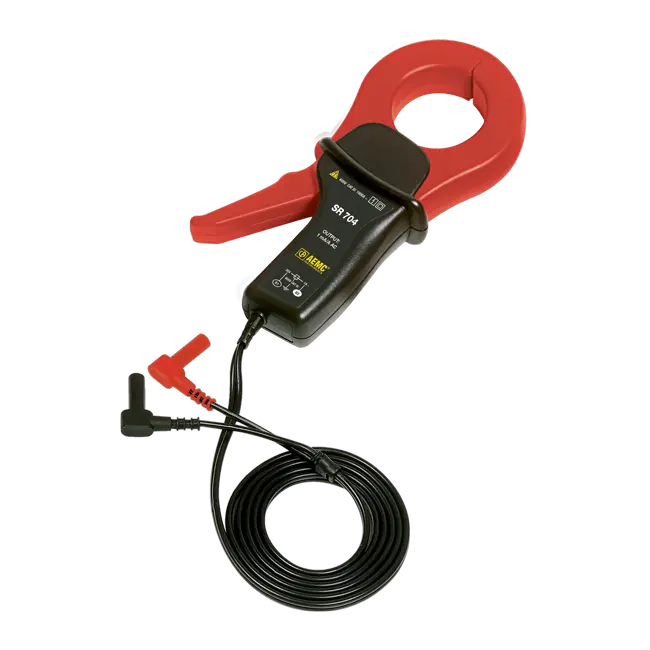

AC Current Probe Model SR704

Specifications

• Maximum Conductor Size: 2.05 in (52 mm)
• Current Range: 1000 Arms AC
• Measurement Range: 1 mA to 1200 A AC
• Output: 5 ft (1.5 m) lead with safety 4 mm banana plug
• Transformation Ratio: 1000:1
• Output Signal: 1 mA/A AC (1 A @ 1000 A)
• Accuracy 50/60Hz: 0.3 % @ 1000 A
• Frequency Range: 30 Hz to 5 kHz
• Phase Shift at 50Hz: 0.7 ° @ 1000 A
• Open Secondary Voltage: Limited to < 25 V
• Load Impedance: 5 Ω max
• Overload: 1200 A for 15 min ON, 30 min OFF
• Dimensions (H x W x D): (4.37 x 8.50 x 1.77) in (111 x 216 x 45) mm
• Operating Temperature: (14 to 122) °F (-10 to 50) °C
• Storage Temperature: (-4 to 158) °F (-20 to 70) °C
• Operating Humidity: 90 % RH
• Pollution Degree: 2
• Ingress Protection (IP): IP40
• EMC: EN 61326-1
• Safety Compliance: EN/IEC 61010-1 600 V CAT III, EN/IEC 61010-032
• Weight: 1.21 lb (0.55 kg)
