AEMC JM830A AC Current Probe Model JM830A (3000A, .333mA/A, Lead) L** (2110.83)
SKU: 2110.83 | JM830A

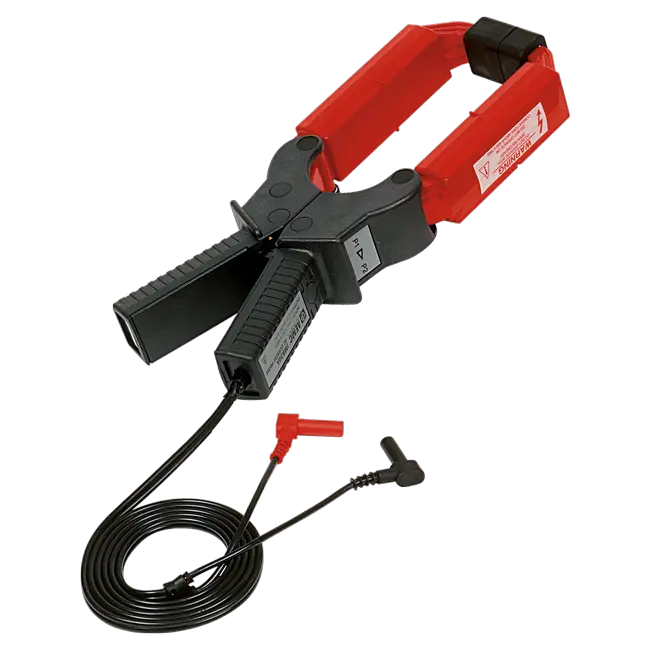

AC Current Probe Model JM830A
The JM830A is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 3600AAC. The squared jaw permits multiple conductor or bus bar positionings. Provide excellent TRMS capabilities and reliable signal reproduction.
Specifications
| Maximum Conductor Size | Cable: 2.52" (64mm) Bus bar: 1.97 x 5.31” (50 x 135mm), 2.52 x 3.94” (64 x 100mm) |
| Current Range | 2400AAC (3000AAC if ambient temperature <95°F / 35C°) |
| Measurement Range | 1 to 2400AAC (3000AAC if ambient temperature <95°F / 35C°) |
| Output Signal | 0.333mAAC / AAC (1A @ 3000A) |
| Transformation Ratio | 3000:1 |
| Output | 5 ft (1.5m) lead with 4mm safety banana plug |
| Accuracy 50/60Hz | 0.5% @ 3000A |
| Frequency Range | 30Hz to 5kHz |
| Phase Shift | <0.5° (at maximum rating) |
| Load Impedance | ≤5Ω |
| Overload | 3600A for 5 min |
| Operating Temperature | +14° to +122°F (-10° to +50°C) |
| Storage Temperature | -13° to +176°F (-25° to +80°C) |
| Dimensions (HxWxD) | 4.72 x 12.40 x 1.89” (120 x 315 x 48mm) |
| Weight | 2.65 lbs (1200g) |
| Pollution Degree | 2 |
| Rating | UL 94 V0 (handles), ABS UL 94 V2 (jaws) |
| Ingress Protection | IP20 |
| Safety Compliance | IEC 61010-2-32, 600V CAT III |
User Manuals
Model JM830A
Datasheets
Model JM830A - English
Modelo JM830A - Español
Application Notes
Glossary of Current Probe Terms
| Brand | AEMC |
