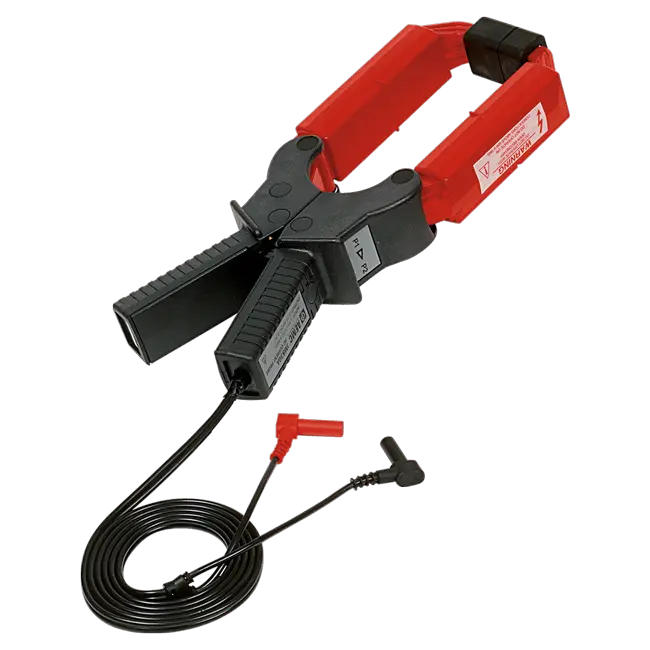

AEMC JM810A AC Current Probe Model JM810A (1000A, 1mA/A, Lead)

SKU: JM810A (Cat. #2110.80)

This combination does not exist.

AEMC Instruments 2400A 2000A

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

Model JM810A | Cat. #2110.80

AC Current Probe Model JM810A

Maximum Conductor Size: Cable: 2.52" (64mm) Bus bar: 1.97 x 5.31” (50 x 135mm), 2.52 x 3.94” (64 x 100mm)
Current Range: 2000AAC
Measurement Range: 1 to 2000AAC
Output Signal: 1mAAC / AAC (2A @ 2000A)
Transformation Ratio: 2000:2
Output: 5 ft (1.5m) lead with 4mm safety banana plug
Accuracy 50/60Hz: 0.5% @ 2000A
Frequency Range: 30Hz to 5kHz
Phase Shift: <0.5° (at maximum rating)
Load Impedance: ≤1Ω
Overload: 2400A for 10 min
Operating Temperature: +14° to +122°F (-10° to +55°C)
Storage Temperature: -40° to +158°F (-40° to +70°C)
Dimensions (HxWxD): 4.72 x 12.40 x 1.89” (120 x 315 x 48mm)
Rating: UL 94 V0 (handles), ABS UL 94 V2 (jaws)
Ingress Protection: IP20
Safety Compliance: IEC 61010-2-32, 600V max
Weight: 2.65 lb (1.20 kg)

Brand

AEMC
