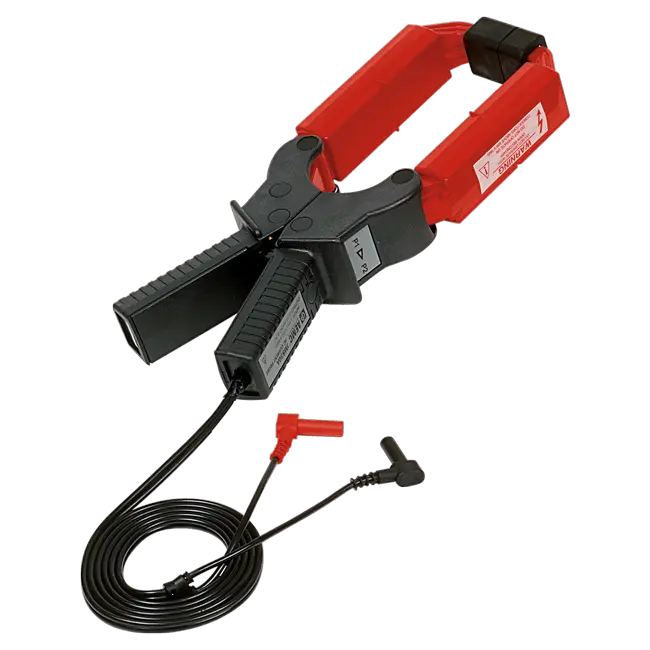

AC Current Probe Model JM810A

The JM810A is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 2400AAC. The "squared" jaw permits multiple conductor or bus bar positionings. Provide excellent TRMS capabilities and reliable signal reproduction.

Specifications

Maximum Conductor SizeCable: 2.52" (64mm)
Bus bar: 1.97 x 5.31” (50 x 135mm), 2.52 x 3.94” (64 x 100mm)
Current Range2000AAC
Measurement Range1 to 2000AAC
Output Signal1mAAC / AAC (2A @ 2000A)
Transformation Ratio2000:2
Output5 ft (1.5m) lead with 4mm safety banana plug
Accuracy 50/60Hz0.5% @ 2000A
Frequency Range30Hz to 5kHz
Phase Shift<0.5° (at maximum rating)
Load Impedance≤1Ω
Overload2400A for 10 min
Operating Temperature+14° to +122°F  (-10° to +55°C)
Storage Temperature-40° to +158°F  (-40° to +70°C)
Dimensions  (HxWxD)4.72 x 12.40 x 1.89” (120 x 315 x 48mm)
Weight2.65 lbs (1200g)
RatingUL 94 V0 (handles), ABS UL 94 V2 (jaws)
Ingress ProtectionIP20
Safety ComplianceIEC 61010-2-32, 600V max
