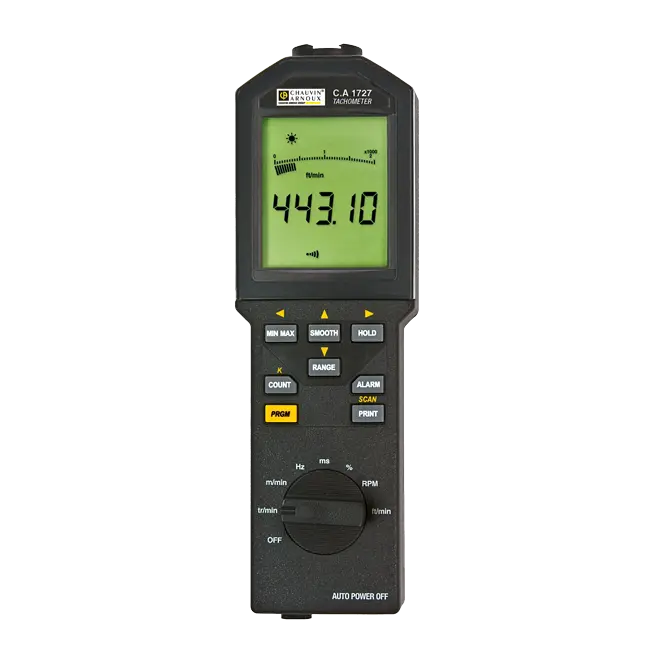

Tachometer Model C.A 1727

Specifications

• Range: (60 to 100,000) RPM
• Resolution: (0.0006 to 6) RPM depending on range
• Accuracy: 1x10 -4 of reading ± 6 counts
• Range: Range: (0.1 to 10,000) m / min
• Resolution: (0.0006 to 6) m / min or ft / min depending on range
• Accuracy: 1x10 -4 of reading ± 1 increment
• Range: Range: (0.1 to 10,000) Hz
• Resolution: (0.0004 to 0.4) Hz depending on range
• Accuracy: 4x10 -5 of reading ± 4 counts
• Range: (0.1 to 10,000) ms
• Resolution: (0.0003 to 0.3) ms depending on range
• Accuracy: 1x10-4 of reading ± 5 counts
• Range: (10 to 10,000) %
• Resolution: (0.1 to 1) % depending on range
• Accuracy: 0.1 % of scale (0.2 to 50) Hz 0.2 % of scale (50 to 125) Hz 1 % of scale otherwise
• Range: 0 to 99,999 events
• Accuracy: ± 1 event
• Measuring Distance: (0.4 to 19.7) in (1 to 50) cm
• Measurement Angle: ±15 ° in relation to the perpendicular of reflective surface
• Memory: 4000 points
• Communication \ PC: via USB \ TachoGraph software (included)
• Accessories (Not Included): Mechanical adapter, calibrated wheel, conical end fitting, cylindrical end fitting.
• Power Supply: 9 V alkaline battery (included)
• Battery Life: 250 x 5 min measurements with optical sensor; 600 x 5 min measurements with external sensor
• Data Storage: 4000 measurements
• Operation Temperature: (32 to 131) °F (0 to 55) °C 90 % RH
• Storage Temperature: (-4 to 158) °F (-20 to 70) °C 95 % RH
• Dimensions: (8.5 x 2.83 x 1.85) in (216 x 72 x 47) mm
• Ingress Protection: IP51
• Safety Compliance: IEC 61010-1
• Weight: 0.55 lb (0.25 kg)
