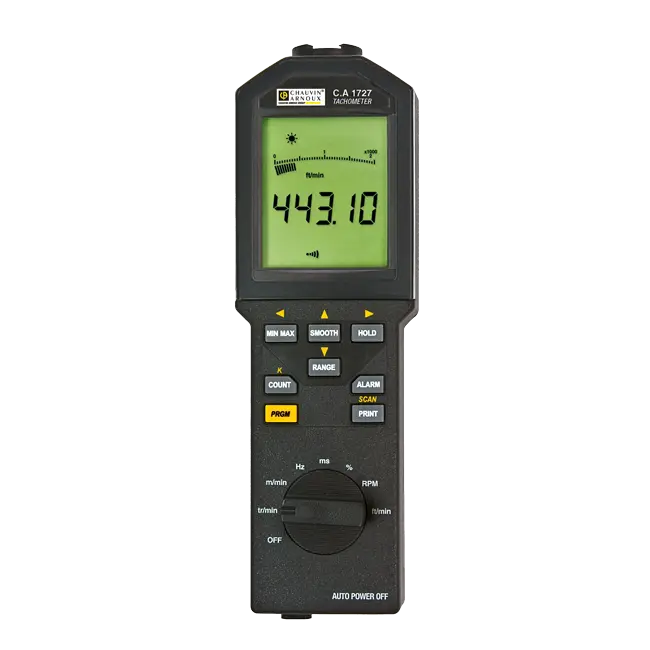

Tachometer Model C.A 1727
This instrument is simple to use and offers numerous measurement possibilities with or without contact. Measurement by photo-reflection for no-contact measurement: a reflective strip is positioned on the part to be tested. The optical sensor helps to prevent external disturbances and the active, modulated infrared beam guarantees correct measurements.
For traditional measurement with contact, a mechanical adapter (cylinder, cone or calibrated wheel) converts the rotation speed into pulses which are then measured by the tachometer.
Model C.A 1727 - Cat. #1748.30: Includes hard carrying case, (1) FRB connector, (1) 9 V battery, (1) set of (15) reflective strips, USB cable, a printed Quick Start Guide, TachoGraph software and a user manual.
Specifications
| Rotational Speed Function | |
| Range | (60 to 100,000) RPM |
| Resolution | (0.0006 to 6) RPM depending on range |
| Accuracy | 1x10-4 of reading ± 6 counts |
| Linear Speed Function | |
| Range | Range: (0.1 to 10,000) m / min |
| Resolution | (0.0006 to 6) m / min or ft / min depending on range |
| Accuracy | 1x10-4 of reading ± 1 increment |
| Frequency Function | |
| Range | Range: (0.1 to 10,000) Hz |
| Resolution | (0.0004 to 0.4) Hz depending on range |
| Accuracy | 4x10-5 of reading ± 4 counts |
| Period Function | |
| Range | (0.1 to 10,000) ms |
| Resolution | (0.0003 to 0.3) ms depending on range |
| Accuracy | 1x10-4 of reading ± 5 counts |
| Duty Cycle Function | |
| Range | (10 to 10,000) % |
| Resolution | (0.1 to 1) % depending on range |
| Accuracy | 0.1 % of scale (0.2 to 50) Hz 0.2 % of scale (50 to 125) Hz 1 % of scale otherwise |
| Count Function | |
| Range | 0 to 99,999 events |
| Accuracy | ± 1 event |
| Optical Sensor | |
| Measuring Distance | (0.4 to 19.7) in (1 to 50) cm |
| Measurement Angle | ±15 ° in relation to the perpendicular of reflective surface |
| General Features | |
| Memory | 4000 points |
| Communication \ PC | via USB \ TachoGraph software (included) |
| Accessories (Not Included) | Mechanical adapter, calibrated wheel, conical end fitting, cylindrical end fitting. |
| Power Supply | 9 V alkaline battery (included) |
| Battery Life | 250 x 5 min measurements with optical sensor; 600 x 5 min measurements with external sensor |
| Data Storage | 4000 measurements |
| Operation Temperature | (32 to 131) °F (0 to 55) °C 90 % RH |
| Storage Temperature | (-4 to 158) °F (-20 to 70) °C 95 % RH |
| Dimensions | (8.5 x 2.83 x 1.85) in (216 x 72 x 47) mm |
| Weight | 8.8 oz (250 g) |
| Ingress Protection | IP51 |
| Safety Compliance | IEC 61010-1 |
