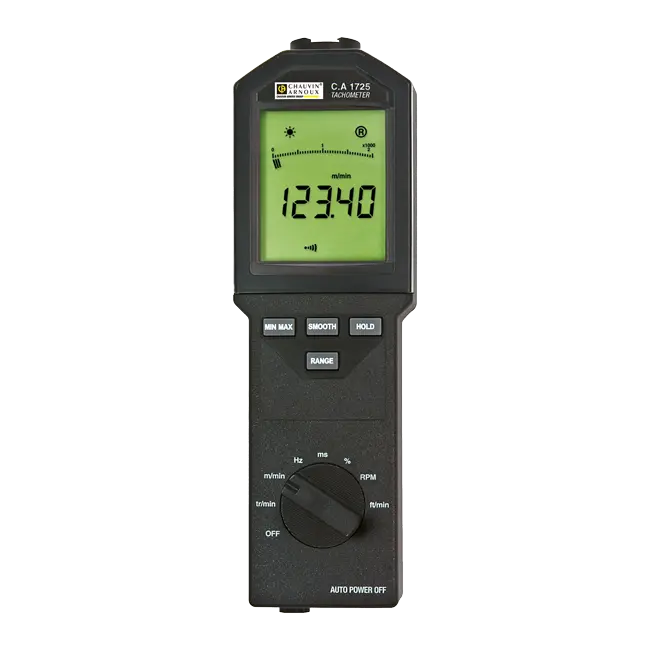

Tachometer Model C.A 1725

This instrument is simple to use and offers numerous measurement possibilities with or without contact. Measurement by photo-reflection for no-contact measurement: a reflective strip is positioned on the part to be tested. The optical sensor helps to prevent external disturbances and the active, modulated infrared beam guarantees correct measurements.

For traditional measurement with contact, a mechanical adapter (cylinder, cone or calibrated wheel) converts the rotation speed into pulses which are then measured by the tachometer.

Model C.A 1725 - Cat. #1748.10: Includes hard carrying case, (1) FRB connector, (1) 9 V battery, (1) set of (15) reflective strips, a printed Quick Start Guide and a user manual.

Specifications

Rotational Speed Function
Range	(6 to 100,000) RPM
Resolution	(0.0006 to 6) RPM depending on range
Accuracy	1 x 10-4 of reading ± 6 counts
Linear Speed Function
Range	(0.1 to 10,000) m / min or ft / min depending on range
Resolution	(0.0006 to 6) m / min or ft / min depending on range
Accuracy	1x10-4 of reading ± 1 increment
Frequency Function
Range	(0.1 to 10,000) Hz
Resolution	(0.0004 to 0.4) Hz depending on range
Accuracy	4x10-5 of reading ± 4 counts
Period Function
Range	(0.1 to 10,000) ms
Resolution	(0.0003 to 0.03) ms depending on range
Accuracy	1x10-4 of reading ± 5 counts
Duty Cycle Function
Range	(10 to 10,000) %
Resolution	(0.1 to 1) % depending on range
Accuracy	0.1 % of scale (0.2 to 50) Hz 0.2 % of scale (50 to 125) Hz 1 % of scale otherwise
Optical Sensor
Measuring Distance	(0.4 to 19.7) in (1 to 50) cm
Measurement Angle	±15 ° in relation to the perpendicular of reflective surface
General Features
Accessories (Not Included)	Mechanical adapter, calibrated wheel, conical end fitting, cylindrical end fitting.
Power Supply	9 V alkaline battery (included)
Battery Life	250 x 5 min measurements with optical sensor; 600 x 5 min measurements with external sensor
Operating Temperature	(32 to 131) °F (0 to 55) °C @ 90 % RH
Storage Temperature	(-4 to 158) °F (-20 to 70) °C @ 95% RH
Dimensions	(8.5 x 2.83 x 1.85) in (216 x 72 x 47) mm
Weight	8.8 oz (250 g)
Ingress Protection	IP51
Safety Compliance	IEC 61010-1
